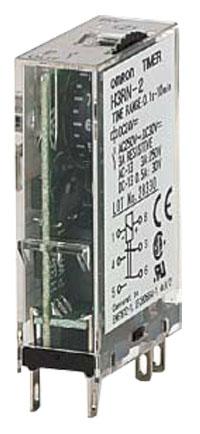

OMRON H3RN11DC12 Timing Relay
This relay offers precise ON-delay and interval timing functions with multiple operating modes, including Recycling OFF start and Recycling ON start. Compatible with G2R relay sockets, it supports a variety of time ranges from 0.1 seconds to 10 hours, making it suitable for automation and control applications. The device ensures high reliability with conforming to standards like EN61812-1 and IEC60664-1, and features robust ratings such as 3 A at 250 V AC resistive load. Its compact, UL-approved design makes it ideal for industrial automation systems requiring precise timing control.
OMRON H3RN11DC12 Timing Relay Specifications:
- Timing Ranges: 10.1 s to 10 min (short-time), 0.1 min to 10 h (long-time)
- Supply Voltage: 24 VAC (50/60 Hz); 12, 24 VDC
- Power Consumption: 24 VAC approx. 0.8 VA; 12 VDC approx. 0.5 W; 24 VDC approx. 0.4 W
- Operating Mode: ON-delay, interval, flicker OFF-start, flicker ON-start
- Operating Voltage Range: 85% to 110% of rated voltage
- Control Output: 3 A at 250 VAC resistive load
- Insulation Resistance: 100 MQ min. at 500 VDC
- Dielectric Strength: 2,000 VAC for 1 min
- Vibration Resistance: 10-55 Hz, 0.75-mm amplitude, 1 hour
- Shock Resistance: 300 m/s² (destruction), 100 m/s² (malfunction)
- Ambient Temperature: -10°C to 55°C (operating), 25°C to 65°C (storage)
- Ambient Humidity: 35% to 85%
- Life Expectancy: Mechanical 10 million operations, Electrical 100,000 operations
- Degree of Protection: IP40
- Weight: Approx. 18g
- Standards: UL508, CSA C22.2 No. 14, EN61812-1, IEC60664-1
- Impulse Withstand Voltage: 1 kV
- Noise Immunity: 1.5 KV (noise); Static Immunity: 8 kV (destruction), 4 kV (malfunction)
Buy the Omron H3RN11DC12 – Reliable Timing Relay for Industrial Applications
Purchase the Omron timing relay online today and benefit from its reliable ON delay and interval functions, supporting multiple modes from 0.1 seconds to 10 hours. Compatible with G2R socket, it suits various automation and control systems. Its high-rated control output, superior insulation, and conforming to international standards make it ideal for industrial environments. Easy to install and operate, this relay ensures precise timing control, reduces downtime, and improves process efficiency, making it a perfect choice for demanding industrial applications.
Buy Omron H3RN11DC12 now and experience unmatched reliability and precise timing for your industrial automation needs.
Frequently Asked Questions
Where can I buy OMRON H3RN11DC12?
You can click on the BUY or RFQ button to purchase H3RN11DC12 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part H3RN11DC12?
You can download the H3RN11DC12 datasheet or visit the OMRON website for support.
Who is the manufacturer of H3RN11DC12?
OMRON
