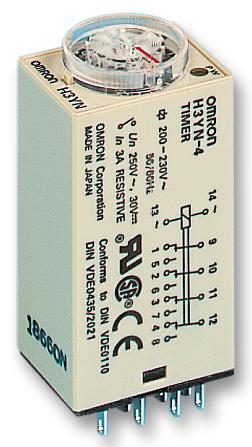

OMRON H3YN2200230AC Solid-state Timer
The H3Y Series solid-state timers offer multiple timing ranges, operating modes, and compatibility with MY relays for industrial automation. Features include large transparent knobs for easy time setting, UL, CSA, and IEC certifications, and EMC standards compliance. They support surface and DIN-track mounting with various socket options, enabling flexible installation in control panels. With high durability, they withstand over a million operations, and their electrical specifications allow switching of micro loads with minimal minimum load requirements. Designed for reliable cycle counting and precise timing control, these timers ensure safety and efficiency in industrial environments.
OMRON H3YN2200230AC Solid-state Timer Specifications:
- Time Ranges: 0.04 to 3 hours (varies per model), rated time settings from 0.04s to 10h
- Rated Supply Voltage: 12, 24, 48, 100-120, 200-230 V AC/DC, with operating voltage range 85-110%
- Control Outputs: DPDT contact 5 A at 250 VAC, resistive load, or 3 A for 4PDT models; minimal load 1 mA at 5 VDC
- Reset Voltage: Min. 10% of rated supply voltage, with diode for reverse voltage protection on DC models
- Electrical Life: 200,000 to 500,000 operations depending on model, under resistive load
- Durability: Mechanical life of 10 million operations; electrical life up to 500,000 cycles
- Operating Temperature: -10°C to +55°C, storage -25°C to +65°C, humidity 35-85%
- Enclosure Rating: IP40, compliant with EMI/EMS standards (EN 61812-1, EN 55011, IEC 61000 series)
- Dimensions: Varies by model; H3Y-2, H3Y-2-0 approx. 28x73 mm, H3Y-4 approx. 28x126 mm
- Certifications: UL, CSA, Lloyds, CCC, conforming to IEC 61812-1 and IEC 60664-1 standards
Buy the Omron H3Y-230VAC – Reliable Industrial Timer for Automation
Order the Omron H3Y-230VAC solid-state timer online today and enhance your automation systems with reliable timing control. Features include multiple time ranges, control modes, easy-to-set transparent knobs, and certifications like UL, CSA, and IEC compliance. Designed for high durability, it operates within a wide voltage range and supports various mounting options for flexible installation. Ideal for controlling micro loads and ensuring accurate cycle counts, this timer ensures safety, efficiency, and long-term operational reliability in industrial environments.
Buy Omron H3Y-230VAC now and experience unmatched reliability and precise timing for industrial automation.
Frequently Asked Questions
Where can I buy OMRON H3YN2200230AC?
You can click on the BUY or RFQ button to purchase H3YN2200230AC from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part H3YN2200230AC?
You can download the H3YN2200230AC datasheet or visit the OMRON website for support.
Who is the manufacturer of H3YN2200230AC?
OMRON
