OMRON J7V Subminiature Basic Switch
The subminiature basic switch features a compact design capable of handling a 7A load at 250 VAC, making it suitable for space-constrained applications. It offers snap-action switching with various actuator options like pin plunger, hinge lever, roller lever, and long hinge lever, all RoHS compliant. Rated for resistive loads with a voltage of 125 VAC or 250 VAC, it withstands mechanical and electrical durability up to 1 million operations. Its insulating resistance exceeds 100 MΩ, and it features a dielectric strength of 600 VAC between terminals, ensuring safety and reliability in control systems.
OMRON J7V Subminiature Basic Switch Specifications:
- Rated voltage: 125 VAC and 250 VAC at 7A resistive load
- Contact Material: Silver alloy + Gold plated
- Insulation Resistance: 100 MΩ minimum at 500 VDC
- Dielectric Strength: 600 VAC between terminals for 1 min
- Mechanical Durability: 1,000,000 operations minimum
- Electrical Durability: 50,000 operations minimum
- Operating Speed: Mechanical 400 operations/min, Electrical 30 operations/min
- Operating Force: Max 1.37 N (140 gf)
- Releasing Force: Min 0.27 N (28 gf)
- Ambient Temperature: -10°C to +80°C
- Vibration Resistance: 10 to 55 Hz, 1.5 mm double amplitude
- Shock Resistance: 200 m/s² maximum
- Degree of Protection: IEC IP40
- Weight: Approx. 1 g (pin plunger models)

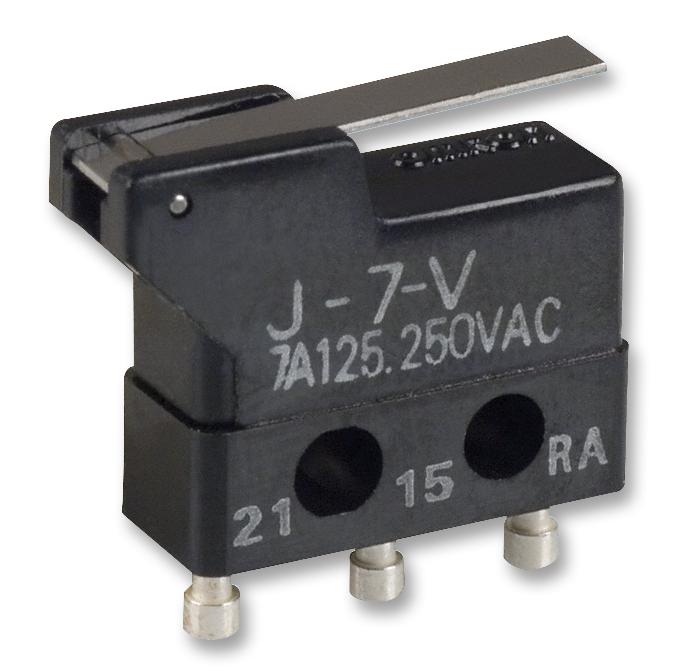

Buy the Omron Series Subminiature Switch: J7V
Experience precision control with the compact Omron Subminiature Basic Switch, capable of handling 7A at 250 VAC. Designed for tight spaces, it offers high durability with up to 1 million mechanical operations and excellent electrical performance. Its various actuator options allow versatile applications in industrial automation and control systems, conforming to RoHS standards for environmental safety. Easy to install and sine-wave resistant, order now to ensure reliable performance in your critical control or automation projects.
Get Omron J7V today—built for space-saving control with reliable 7A capacity and long-lasting durability.
Frequently Asked Questions
Where can I buy OMRON J7V?
You can click on the BUY or RFQ button to purchase J7V from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part J7V?
You can download the J7V datasheet or visit the OMRON website for support.
Who is the manufacturer of J7V?
OMRON
