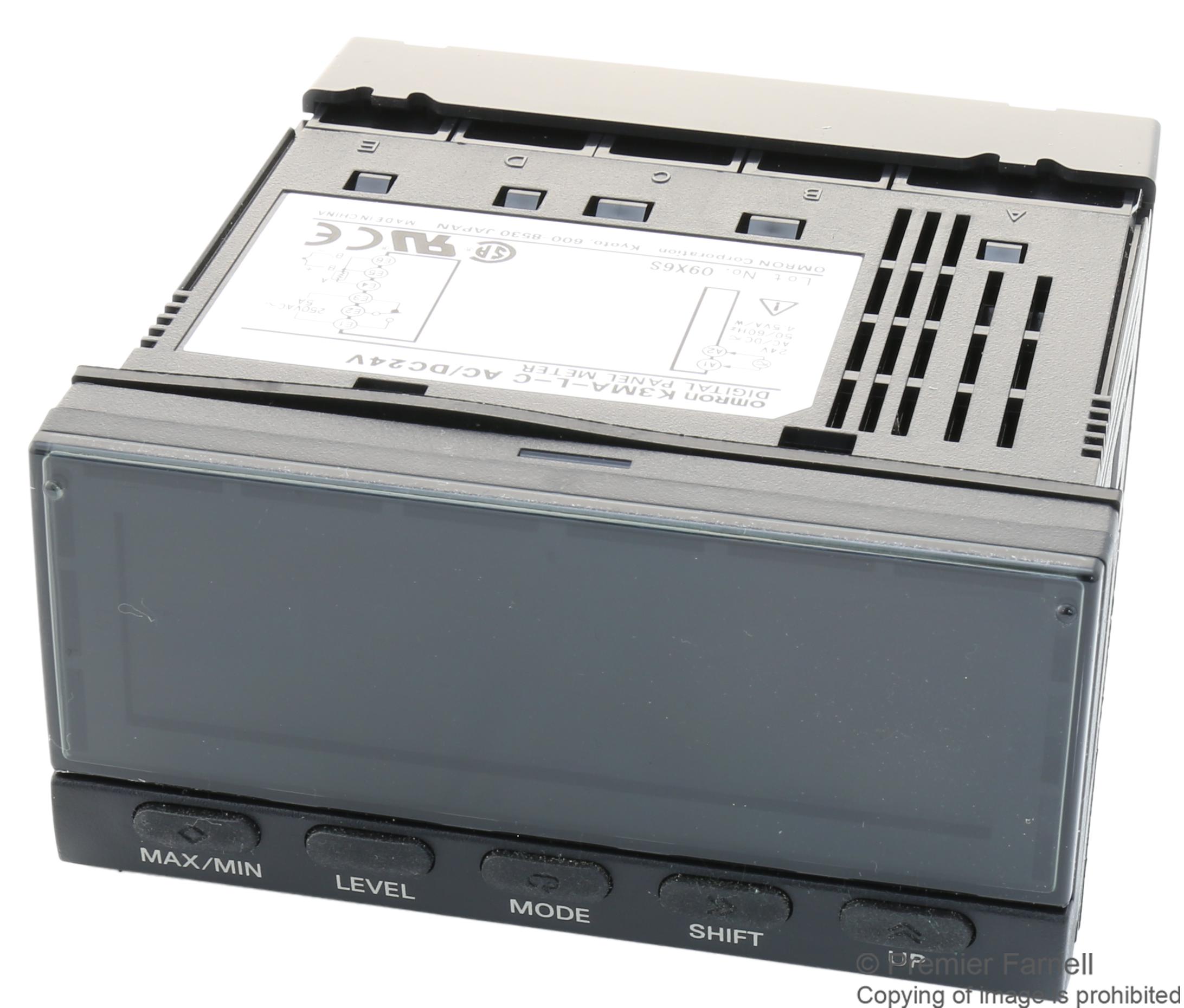

OMRON K3MAJA224VACDC Process Meter
The Process Meter is a highly visible digital panel instrument with a 7-segment LCD display, capable of measuring DC voltage and current with multi-range inputs. It features water- and dust-proof front panels (NEMA4X/IP66), and supports front-panel key operations for easy setup, including scaling, zero adjustments, and auto-zero functions. It offers max/min value display, automatic flicker suppression, and various output options with relay contacts. Suitable for industrial applications, it has UL, CE, and EN61326 EMC conformity, with optional accessories like splash-proof covers and waterproof gaskets.
OMRON K3MAJA224VACDC Process Meter Specifications:
- Supply Voltage: 100-240 VAC or 24 VAC/VDC
- Power Consumption: 6 VA (AC), 4.5 W (DC)
- Insulation Resistance: 20 MΩ min. at 500 VDC
- Dielectric Strength: 2,000 VAC for 1 min
- Noise Immunity: ±1,500 V (power terminals), ±480 V (common mode)
- Vibration Resistance: 10-55 Hz, 50 m/s² for 10 sweeps
- Shock Resistance: 150 m/s² (operation), 100 m/s² (relay outputs), 3 times each axis
- Operating Temperature: -10°C to 55°C, Storage: -25°C to 65°C
- Display: 7-segment, Character height 14.2mm
- Display Digits: 5 digits (19999 - 99999)
- Input Signal: DC voltage 0-5 V, 1-5 V, +5 V, +10 V; DC current 0-20 mA, 4-20 mA
- Input Impedance: 1 MΩ (voltage), approx. 45 Ω (current)
- Output: 2 relay contacts (SPST-NO), rated 5A/250 VAC or 5A/30 VDC
- Dimensions: Depth approximately 80 mm, panel cutout compatible with recommended mounting
- Protection: NEMA4X/IP66 front panel, finger protection IEC standards
Buy the Buy Omron Process Meter Part Number K3MA-J Online
Order the Omron Process Meter online today for reliable and precise measurement of DC voltage and current. Its water- and dust-proof front panel ensures durability in harsh industrial conditions. Features include easy front-panel operation, max/min display, flicker suppression, and relay outputs for automation. Certified UL, CE, and EMC compliant, this versatile instrument is ideal for monitoring tank pressures, flowrates, or liquid levels in manufacturing plants or chemical processing facilities. Fast shipping and excellent support are available for seamless integration into your system.
Get Omron K3MA-J today—designed for precision measurement and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy OMRON K3MAJA224VACDC?
You can click on the BUY or RFQ button to purchase K3MAJA224VACDC from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part K3MAJA224VACDC?
You can download the K3MAJA224VACDC datasheet or visit the OMRON website for support.
Who is the manufacturer of K3MAJA224VACDC?
OMRON
