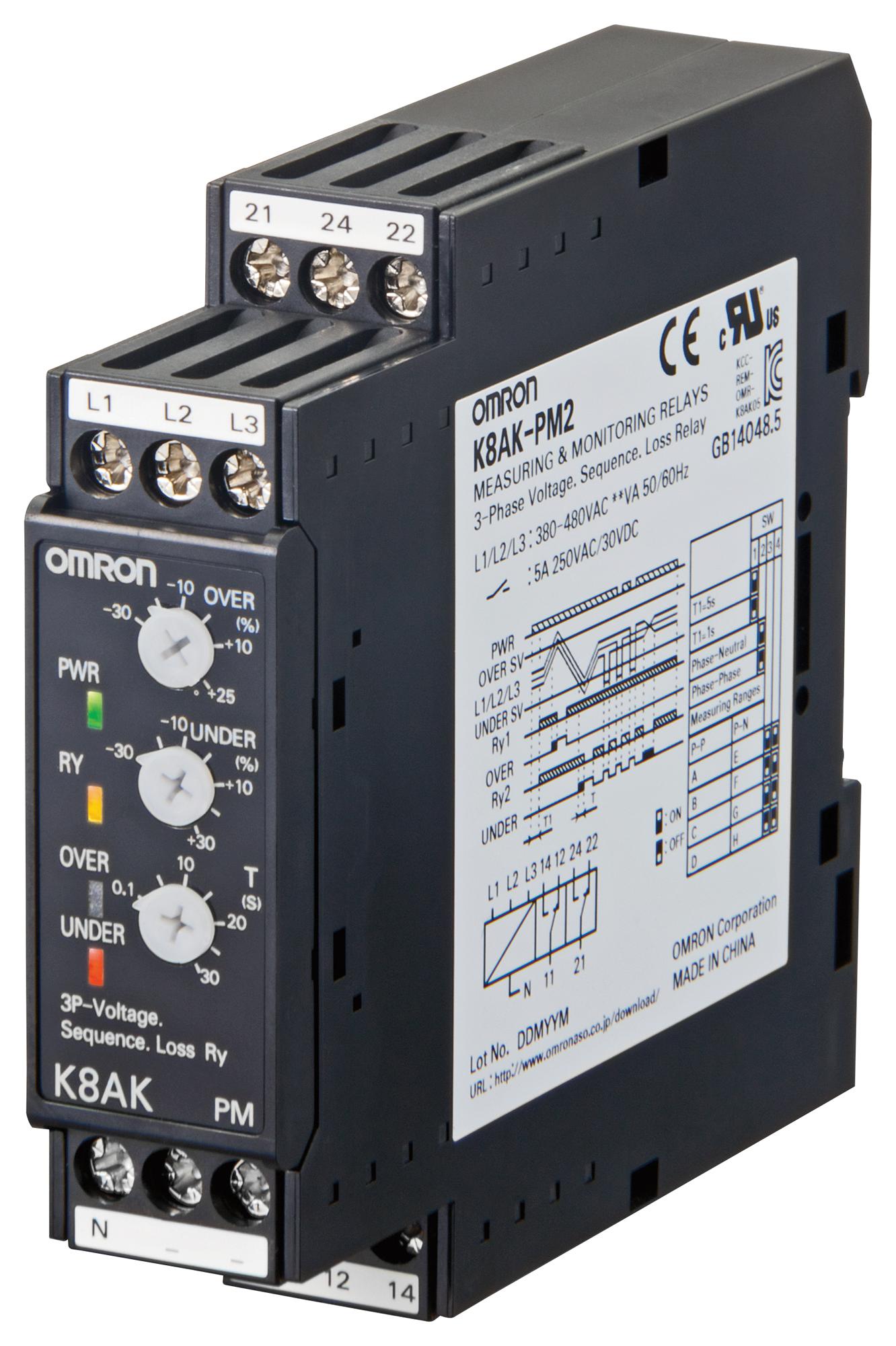

OMRON K8AKPM2 Power Monitoring Relay
The three-phase voltage and phase-sequence phase-loss relay monitors power supplies for industrial equipment, supporting both 3-wire and 4-wire configurations. It features resistance to inverter noise, adjustable switch settings, and dual SPDT output relays rated at 5 A at 250 VAC for overvoltage and undervoltage detection. With multi-voltage support, LED indicators for status, and safety certifications, this relay provides reliable operation with easy mounting on DIN tracks, making it ideal for monitoring and protecting three-phase power systems worldwide.
OMRON K8AKPM2 Power Monitoring Relay Specifications:
- Rated Input (K8AK-PM1): 200, 220, 230, 240 VAC; (K8AK-PM2): 380, 400, 415, 480 VAC
- Input load: Approx. 4.4 VA
- Overvoltage/Undervoltage setting range: -30% to +25% of rated voltage
- Reset Value: 5% of operating value
- Operating times: 0.1 to 30 seconds
- Indicators: Power (Green), Relay (Yellow), Over/Under (Red)
- Output relays: Two SPDT, 5 A at 250 VAC resistive load
- Maximum switching capacity: 1250 VA
- Ambient temperature: -20°C to 60°C
- Storage temperature: -25°C to 65°C
- Humidity: 25% to 85% RH, non-condensing
- Mounting: DIN track, size 90 x 100 mm
- Case material: PC and ABS, UL 94 V-0
- Weight: Approx. 150 G
- Vibration resistance: 10 to 55 Hz, 50 m/s²
- Shock resistance: 100 m/s², 3 times in 6 directions
- Dielectric strength: 2,000 VAC for 1 min
- Isolation resistance: 20 MΩ
Buy the Omron K8AK-PM – Reliable Power Monitoring Relay for Industrial Applications
Experience reliable power supply monitoring with the Omron Power Monitoring Relay. Designed for industrial facilities, it supports three-phase 3-wire and 4-wire setups. Features include adjustable overvoltage and undervoltage detection, dual output relays rated at 5 A at 250 VAC, LED status indicators, and DIN track mounting. This device helps prevent electrical faults, offers wide voltage support, and provides easy configuration to ensure stable power operation, making it a vital component for industrial power system protection.
Get Omron K8AK-PM today—built for precision, reliable power monitoring, and long-lasting durability in industrial environments.
