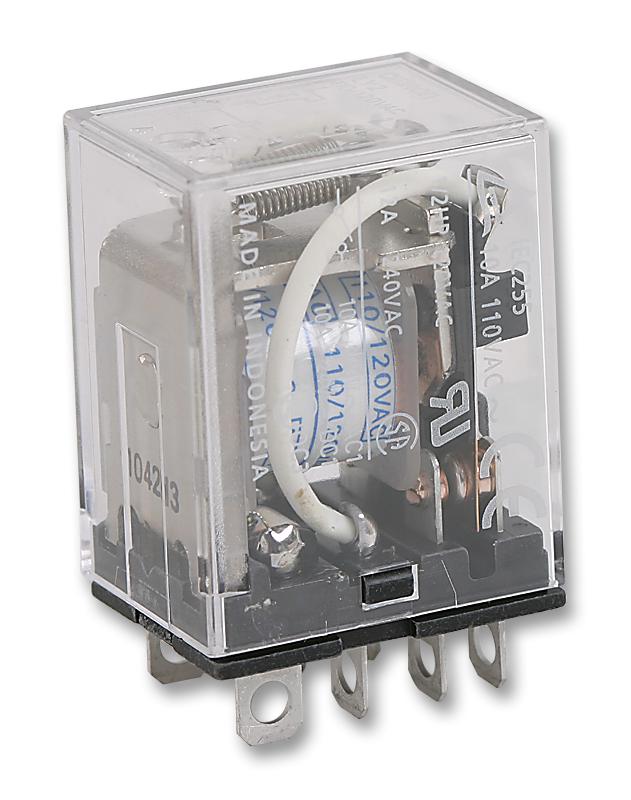

OMRON LY2DC12 General Purpose Relay
This general-purpose relay offers versatile switching capabilities with a DPDT configuration, suitable for industrial and electronic control systems. It features a 12 V DC coil with a resistance of 106.50 ohms and a maximum switching capacity of 10A at 110VAC resistive load. The relay's Ag-Alloy contacts ensure reliable operation, and its compact size makes it ideal for space-constrained applications. It meets UL and CSA standards, with a dielectric strength of 2,000 VAC, and has a durable construction rated for approximately 50 million operations mechanically and 100 million electrically at 18,000 ops/hour. Easy to mount and connect, it is enhanced with optional LED indicators, diode surge suppression, and RC circuits for customizable configurations.
OMRON LY2DC12 General Purpose Relay Specifications:
- Contact Resistance: 50 mΩ max.
- Operate Time: 25 ms max.
- Release Time: 25 ms max.
- Dielectric Strength: 2,000 VAC for 1 minute between contacts of same polarity
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Operating Temperature: -40°C to 70°C (55°C max. over 4A)
- Weight: Approx. 50 g (3PDT), 40 g (DPDT, SPDT)
- Coil Resistance: 106.50 ohms, with a coil inductance of 46 H at 60 Hz
- Rated Load: 10A at 110VAC resistive, 7A at 110VAC inductive, 15A at 240VAC resistive
- Maximum Switching Capacity: 1,100 VA at 110V AC resistive, 830 VA at 240V AC resistive
- Operation Count: Mechanically 50 million operations, electrically 100 million operations at 18,000 ops/hour
Buy the Buy Omron General Purpose Relay Part Number LY2DC12 Online
Secure your Omron LY2DC12 relay online today and benefit from fast delivery of a high-quality, UL/CSA recognized switching component. This relay is ideal for industrial and electronic control applications, offering a 12 V DC coil, a 10 Amp resistive load capacity, and robust Ag-Alloy contacts. Easy to integrate with plug-in or solder terminal options, it ensures reliable operation with a dielectric strength of 2,000 VAC. Purchase now to enhance your control systems with a trusted, durable relay designed for demanding environments.
Order your Omron LY2DC12 Series relay today and enhance your control systems with dependable, UL/CSA approved switching performance for industrial projects.
