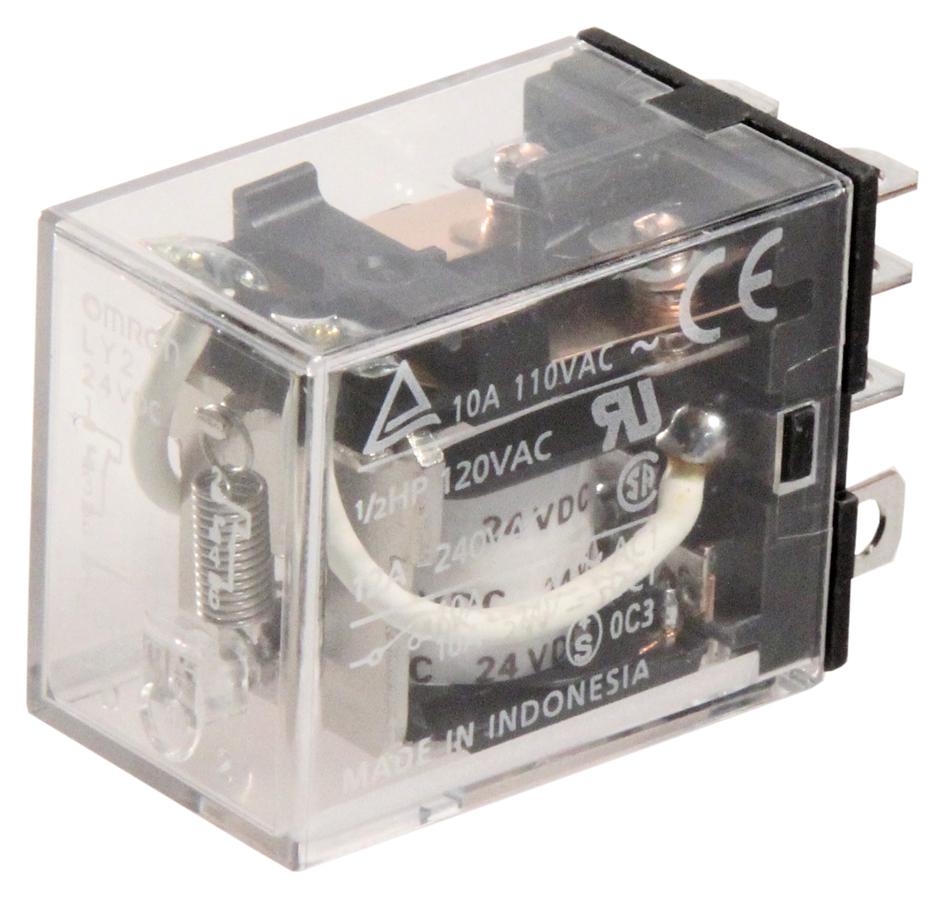

OMRON LY2DC24 Control Relay
This is a general-purpose, single-contact relay with standard bracket mounting. It features plug-in or solder terminal bases, a current rating of 10 amps, a coil voltage of 24 V DC, and a double-pole double-throw (DPDT) configuration.
OMRON LY2DC24 Control Relay Specifications:
- Contact Material: Ag-Alloy
- Contact Form: DPDT
- Contact Ratings: 10A at 110/120/240 VAC resistive load, 5A at 28 VDC resistive load
- Coil Resistance: 1- and 2-pole types, 24 V DC rated voltage, resistance approximately 46 ohms
- Coil Inductance: 180 H (typical)
- Operate Time: 25 ms max.
- Release Time: 25 ms max.
- Dielectric Strength: 2,000 VAC between contacts
- Insulation Resistance: 100 MQ min. at 500 VDC
- Vibration Resistance: 10 to 55 Hz, 1.00 mm double amplitude
- Shock Durability: 1,000 m/s²
- Ambient Operating Temperature: -40°C to +70°C (55°C max. over 4A) Humidity: 35 to 85% RH
- Weight: Approx. 40 g (1.41 oz)
Buy the Omron LY2DC24 – Reliable DPDT Control Relay for Industrial Applications
Experience reliable and durable control with the Omron LY2DC24 relay, featuring a 24 V DC coil and DPDT contacts. Ideal for industrial automation, it supports resistive loads up to 10A at 110/120/240 VAC and includes plug-in or solder terminals for easy installation. With a compact design weighing approximately 40 grams, this relay offers quick switching times of 25 ms, high dielectric strength, and excellent vibration and shock resistance. Perfect for various control and automation solutions requiring dependable switching performance.
Get Omron LY2DC24 today—built for precision and long-lasting durability in control and automation systems.
Frequently Asked Questions
Where can I buy OMRON LY2DC24?
You can click on the BUY or RFQ button to purchase LY2DC24 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part LY2DC24?
You can download the LY2DC24 datasheet or visit the OMRON website for support.
Who is the manufacturer of LY2DC24?
OMRON
