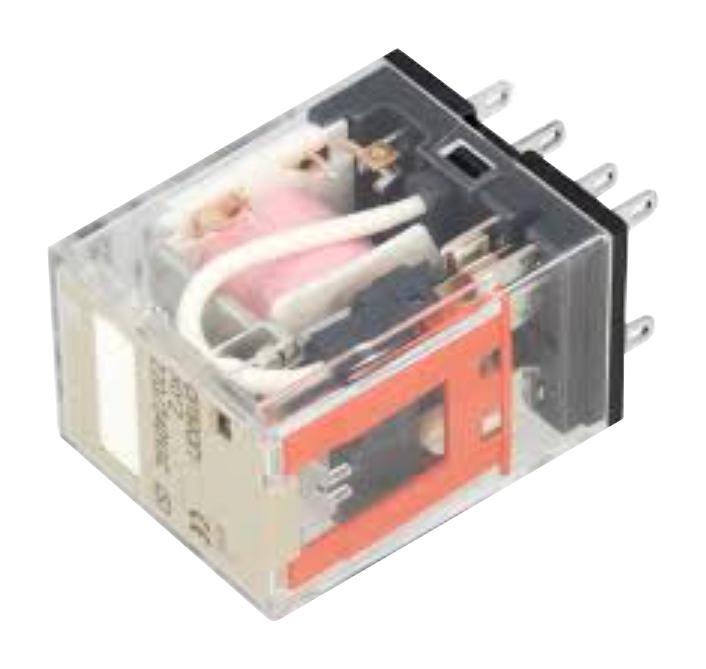

OMRON MY212ACS Power Relay
The MY212ACS is a miniature power relay designed for general-purpose switching applications. It features a compact size with a switch capacity suitable for resistive loads up to 5 A at 220 VAC, and includes options with built-in indicators, diodes, or CR circuits for surge absorption. Its robust construction ensures reliable operation with a maximum of 18,000 mechanical operations per hour, making it ideal for automation and control circuits requiring high durability and stability. The relay supports PCB mounting and complies with safety standards, providing a versatile solution for industrial control systems.
OMRON MY212ACS Power Relay Specifications:
- Rated Voltage: 12, 24, 48, or 100/110 VDC; 24, 110/120, 200/220, or 220/240 VAC
- Coil Resistance: 87 mΩ at 12 VDC, 53.8 mΩ at 24 VDC, 18.5 mΩ at 48 VDC, 9.1/10 mΩ at 100/110 VAC
- Coil Current: 106.5 mA at 12 VDC, 53.8 mA at 24 VDC, 18.5 mA at 48 VDC, 9.1/10 mA at 100/110 VAC
- Coil Power Consumption: 0.17 W at 12 VDC, 0.69 W at 24 VDC, 0.22 W at 48 VDC, approx. 0.9 W at 100/110 VAC
- Contact Rating: 5A at 220 VAC resistive load, 3A at 250 VAC, 5A at 24 VDC, 2A at 24 VDC, 1A at 125 VDC
- Contact Material: Silver alloy with gold plating
- Operating Time: Max. 20 ms for operation, Max. 20 ms for release
- Endurance: Mechanical 18,000 operations/hour, Electrical 1,800 operations/hour at rated load
- Insulation Resistance: Min. 100 MΩ between coil and contacts
- Dielectric Strength: 2,000 VAC at 50/60 Hz for 1 min between coil and contacts; 1,000 VAC for same polarity
- Vibration Resistance: 10 to 55 Hz, 0.5 mm single amplitude
- Shock Resistance: Destruction at 1,000 m/s², Malfunction at 200 m/s²
- Operating Temperature: -25°C to +60°C
- Ambient Humidity: 5% to 85%, no condensation
- Mounting: PCB terminals with internal connections, dimensions in mm provided
Buy the Buy OMRON MY212ACS Part Number MY212ACS Online
Get the OMRON MY212ACS power relay online today for reliable switching in automation and control circuits. With a 5A resistive load capacity at 220VAC, PCB mounting, and options for built-in indicators, diodes, or CR circuits for surge absorption, this relay offers high durability and stability. Perfect for industrial applications, it supports quick operation with maximum 20 ms times and enduring performance of up to 18,000 mechanical operations per hour. Purchase now to enhance your control system with trusted reliability and safety standards compliance.
Order your OMRON MY212ACS relay today and give your industrial control projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy OMRON MY212ACS?
You can click on the BUY or RFQ button to purchase MY212ACS from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part MY212ACS?
You can download the MY212ACS datasheet or visit the OMRON website for support.
Who is the manufacturer of MY212ACS?
OMRON
