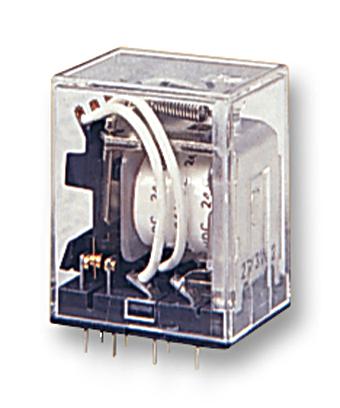

OMRON MY402DC24 Miniature Power Relay
The MY402DC24 is a miniature power relay designed for various industrial and automation applications. It features high contact reliability, fast operating times of 20 ms for both opening and closing, and a rated carry current of 3A. The relay has a coil voltage of 24 VDC, with a coil resistance of approximately 18.5 ohms and inductance around 2,600 H. Its contact materials include gold plating on silver alloy, ensuring durability and excellent conductivity. Suitable for resistive and inductive loads up to 250VAC/125VDC, it offers excellent insulation resistance, vibration and shock resistance, and UL, CSA, and other safety certifications. Compact dimensions and multiple mounting options make it ideal for PCB mounting, surface-mounting, or socket integration.
OMRON MY402DC24 Miniature Power Relay Specifications:
- Contact Resistance: 50 mQ max
- Operation Time: 20 ms max
- Release Time: 20 ms max
- Mechanical Endurance: 18,000 operations/h
- Rated Load: 3A at 250VAC / 3A at 24 VDC
- Max Contact Voltage: 250 VAC / 125 VDC
- Rated Carry Current: 3A
- Ambient Operating Temperature: -55°C to 70°C
- Insulation Resistance: 100 MQ min.
- Vibration Resistance: 10 to 55 Hz, 0.5 mm amplitude
- Shock Resistance: 1,000 m/s²
- Weight: Approx. 35 g
- Coil Resistance: Approx. 18.5 ohms
- Coil Inductance: About 2,600 H
- Certification: UL, CSA compliant
- Dimensions: Refer to diagram with height up to 83 mm for standard models
- Compatibility: Designed for PCB, surface-mount, or socket mounting
Buy the Omron MY402DC24 – Reliable Miniature Power Relay for Industrial Applications
Order the Omron MY402DC24 relay online today and enjoy reliable switching performance with a fast 20 ms response time. Perfect for industrial automation, controlling resistive and inductive loads up to 3A at 250VAC or 24 VDC. Its compact size and dual certifications ensure safety and durability. Designed for PCB, surface-mount, or socket mounting, this relay provides excellent insulation, vibration, and shock resistance, making it ideal for demanding industrial environments. Upgrade your control systems with Omron’s trusted quality available now online.
Get Omron MY402DC24 today—built for precision and long-lasting durability in industrial automation and control systems.
Frequently Asked Questions
Where can I buy OMRON MY402DC24?
You can click on the BUY or RFQ button to purchase MY402DC24 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part MY402DC24?
You can download the MY402DC24 datasheet or visit the OMRON website for support.
Who is the manufacturer of MY402DC24?
OMRON
