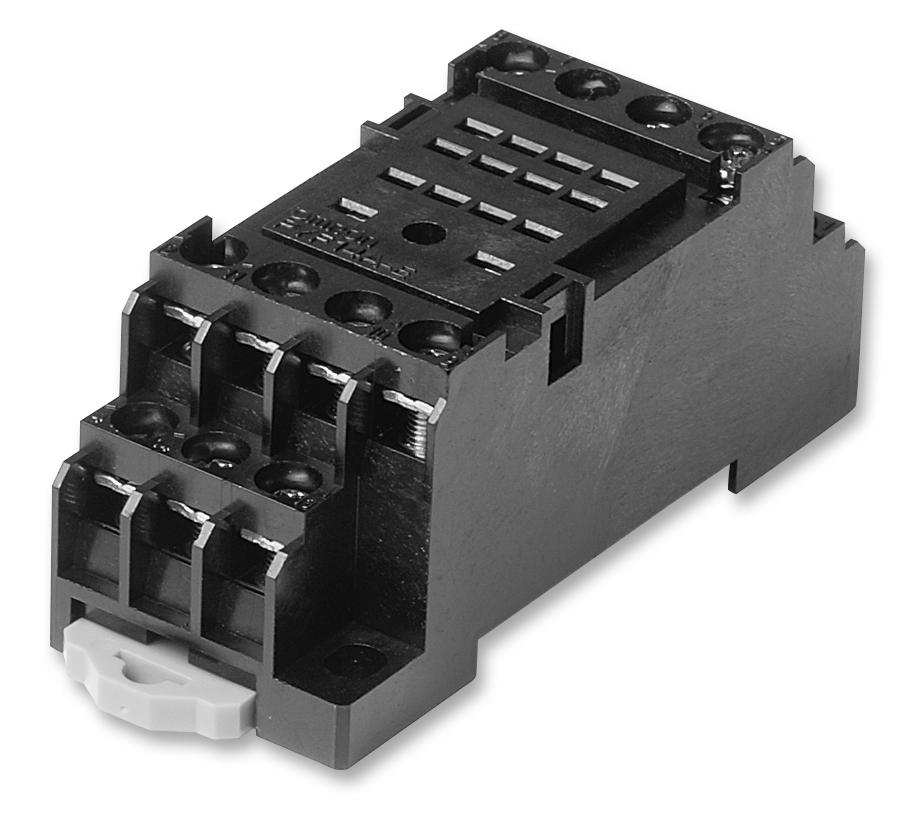

OMRON PYF14ESNB Screwless DIN Socket
The product is a screwless socket designed for easy wiring, incorporating finger protection, and suitable for DIN track mounting. It features a spring-held wire connection mechanism that reduces wiring effort by 30%, ensuring secure contact through a simple three-step process. The socket is made with high dielectric strength and insulation resistance, complying with safety standards. Its rugged construction and compatibility with various relay modules make it ideal for industrial automation and control applications, providing reliable and maintenance-friendly electrical connections.
OMRON PYF14ESNB Screwless DIN Socket Specifications:
- Number of pins: 14
- Connection type: Screwless terminal
- Dielectric strength: 1,500 VAC for 1 min between contact terminals of same polarity
- Insulation resistance: 1,000 MΩ min.
- Maximum current: 10A
- Operating temperature: -20°C to +70°C
- Mounting: Compatible with DIN track
- Material: High-quality insulating material
- Contact resistance: Low for stable electrical performance
- Spring mechanism: Holds wire in place reducing wiring work by 30%
- Protection: Finger-protected structure
- Screwdriver: Flat-blade, 2.5 mm wide
- Applicable wires: Stranded or solid, 0.2 to 1.5 mm²
- Number of installation steps: 3
Buy the Omron Series PYF Screwless DIN Socket: PYF14ESNB
Enhance your setup with the Omron screwless DIN socket, designed for quick wiring and finger protection. Its spring-held mechanism simplifies connection, saving time and reducing errors. Ideal for automation systems, it offers high dielectric strength and insulation resistance, ensuring safety and durability. Easy to install with DIN tracks, this reliable socket supports both stranded and solid wires from 0.2 to 1.5 mm². Upgrade your control system today with this maintenance-friendly, high-performance relay socket engineered for industrial environments.
Buy Omron PYF14ESNB screwless DIN socket now and experience unmatched reliability and performance in industrial control wiring.
