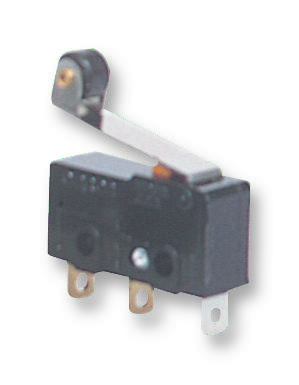

OMRON SS01GL2F Subminiature Switch
The subminiature basic switch offers high reliability and security, with a design suitable for compact electronic applications. Features include a contact gap of 1 mm for interlock use, various actuator types such as pin plungers, hinge levers, and simulated roller levers, and a wide operating force range from 0.08 N to 1.47 N. The switch supports multiple terminal options, including solder and PCB terminals, and complies with RoHS standards. It withstands operating temperatures up to 85°C or 120°C for heat-resistant models, ensuring durability in demanding environments.
OMRON SS01GL2F Subminiature Switch Specifications:
- Ratings: 250 VAC 10A, 125 VAC 3A, 30 VDC 0.1A, 5VDC 160mA
- Contact Form: SPDT, SPST-NC, SPST-NO
- Actuator Types: Pin plunger, hinge lever, roller lever, simulated roller lever
- Terminal Types: Solder, PCB, quick-connect (#110)
- Maximum Operating Force: 0.08 N to 1.47 N (8 gf to 150 gf)
- Releasing Force: 0.01 N to 0.25 N (1 gf to 25 gf)
- Travel: Overtravel minimum 0.4mm to 1.2mm, Overtravel minimum 1mm to 1.2mm
- Operating Temperature: -55°C to +85°C or +120°C for heat-resistant models
- Dimensions: Mounting holes 2.2 mm dia., Reference mounting dimension around 7-8 mm
- Weight: Approx. 1.6g for pin plunger models
- Safety Standards: UL, CSA approved, IEC IP40 protection
- Durability: 30 million operations minimum (standard models)
- Vibration Resistance: 10-55 Hz, 1.5 mm amplitude
- Shock Resistance: 50G (approx.) for 500ms
- VDE/EN61058-1 compliance, PTI index 175
Buy the Buy Reliability Components Subminiature Switch Part Number SS01GL2F Online
Order the OMRON SS01GL2F subminiature switch online today for reliable performance and secure operation in compact electronic systems. Featuring multiple actuator options including pin plungers, hinge, and roller levers, it is RoHS compliant and temperature resistant up to 85°C or 120°C. Suitable for various mounting configurations with solder, PCB, or quick-connect terminals, it supports a wide range of electrical ratings and ensures durability with millions of cycles. Perfect for electronics, industrial automation, and security applications, buy now for fast delivery.
Buy OMRON SS01GL2F now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy OMRON SS01GL2F?
You can click on the BUY or RFQ button to purchase SS01GL2F from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part SS01GL2F?
You can download the SS01GL2F datasheet or visit the OMRON website for support.
Who is the manufacturer of SS01GL2F?
OMRON
