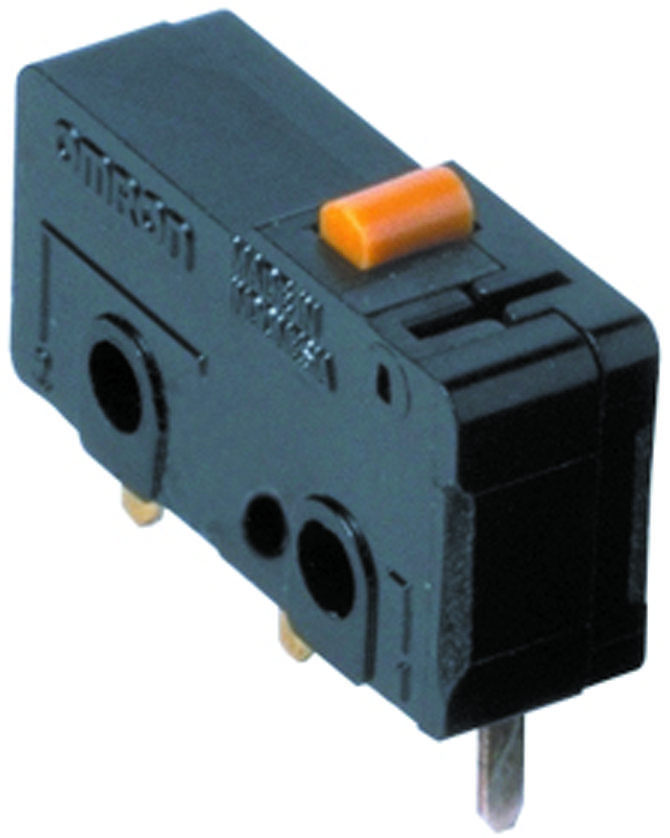

OMRON SS10DBYOMI1 Subminiature Switch
The SS series subminiature basic switch from Omron offers high reliability and security, suitable for various applications with contact ratings from 0.1A to 10.1A. It features durable construction with a lifespan of 30 million operations, multiple actuator types including pin plungers and hinge levers, and complies with RoHS standards. Available with solder, quick-connect, or PCB terminals, it supports a wide operating force range from 0.25 N to 1.47 N. The switch is designed for PCB mounting with dimensions tailored for compact spaces, and it withstands temperatures up to 85°C or 120°C depending on the model. Ensures precise switching and reliable performance in automation and control systems.
OMRON SS10DBYOMI1 Subminiature Switch Specifications:
- Ratings: 250 VAC 10.1A, 125 VAC 5A, 30 VDC 0.1A - 10.1A
- Contact Form: SPDT, SPST-NC, SPST-NO
- Contact Resistance: 30 mΩ max.
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 4,500 VAC for 1 min between terminals and ground
- Operating Force: 0.25 N to 1.47 N depending on model
- Releasing Force: 0.02 N to 0.25 N, varies by model
- Travel: Overtravel 0.4 mm to 1.2 mm, Pretravel 0.5 to 0.6 mm
- Vibration Resistance: 10 to 55 Hz, 1.5 mm amplitude
- Temperature Ratings: -55°C to +85°C or +120°C depending on model
- Mounting Hole Diameter: 2.2 mm with M2.3 screw compatibility
- Durability: Up to 30 million operations
- Compliance: RoHS, UL, CSA approved
- Dimensions: Compact size with reference mounting dimensions provided
Buy the Buy Omron Subminiature Basic Switch Part Number SS10DBYOMI1 Online
Purchase the Omron SS10DBYOMI1 subminiature switch online to ensure high-quality, durable, and reliable operation. With a maximum load rating of 10.1A at 250VAC, this switch is suitable for automation, control, and security systems. Its compact design makes it ideal for space-constrained applications, while its robust construction guarantees long-term performance with up to 30 million operations. RoHS compliant and available with multiple terminal options, buying online offers quick delivery and official warranty, making it the perfect choice for professionals and engineers seeking dependable switching solutions.
Buy Omron SS10DBYOMI1 switch now and experience unmatched reliability and performance in automation and control applications.
Frequently Asked Questions
Where can I buy OMRON SS10DBYOMI1?
You can click on the BUY or RFQ button to purchase SS10DBYOMI1 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part SS10DBYOMI1?
You can download the SS10DBYOMI1 datasheet or visit the OMRON website for support.
Who is the manufacturer of SS10DBYOMI1?
OMRON
