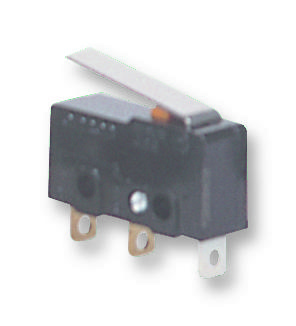

OMRON SS5GL1112 Micro Switch
The SS5GL1112 is a compact, high-reliability subminiature micro switch designed for precise control applications. It features a standard contact gap of 1 mm, robust construction, and operating forces ranging from 0.08 N to 1.47 N depending on model variants. Suitable for automation, security, and interlock systems, it supports a variety of terminal configurations including solder, PCB, and quick-connect types. Compliant with RoHS, it withstands temperatures up to 85°C, ensuring durability in demanding environments. Its precise mechanical characteristics guarantee long service life and consistent performance in compact electronic and mechanical assemblies.
OMRON SS5GL1112 Micro Switch Specifications:
- Contact Gap: 1 mm
- Operating Force: 0.08 N to 1.47 N depending on model
- Maximum Operating Voltage: 250 VAC, 125 VAC, 30 VDC
- Contact Resistance: 30 mΩ max. (initial)
- Insulation Resistance: 100 MΩ min. (at 500 VDC)
- Electric Load: 0.1 A to 10.1 A, depending on model
- Temperature Range: -55°C to +85°C
- RoHS Compliant
- Durability: 30,000,000 operations min.
- Mounting Holes: 2.2 mm diameter, M2.3 screw compatible
- Weight: Approximately 1.6 g
- Material: Polyacetal resin, stainless roller lever options available
- Vibration Resistance: 10 to 55 Hz, 1.5 mm amplitude
- Shock Resistance: 50 G (varies by model)
- Approvals: UL, CSA, IEC IP40
- Dimensions: Refer to reference drawings for detailed measurements
Buy the Buy OMROM Subminiature Micro Switch Part Number SS5GL1112 Online
Purchase the OMROM SS5GL1112 micro switch online today and benefit from its proven reliability, compact design, and versatile terminal options. Designed for high-performance industrial control, security, and automation applications, this switch supports a broad temperature range and a remarkable service life of over 30 million operations. With options for solder, PCB, and quick-connect terminals, it is easy to install in various configurations. Ensure optimal system performance and safety with this RoHS-compliant, high-quality micro switch that guarantees precise operation and long-lasting durability.
Order your OMROM Series SS5GL1112 micro switch today and ensure reliable control in your electronic and mechanical projects with high durability and precision.
Frequently Asked Questions
Where can I buy OMRON SS5GL1112?
You can click on the BUY or RFQ button to purchase SS5GL1112 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part SS5GL1112?
You can download the SS5GL1112 datasheet or visit the OMRON website for support.
Who is the manufacturer of SS5GL1112?
OMRON
