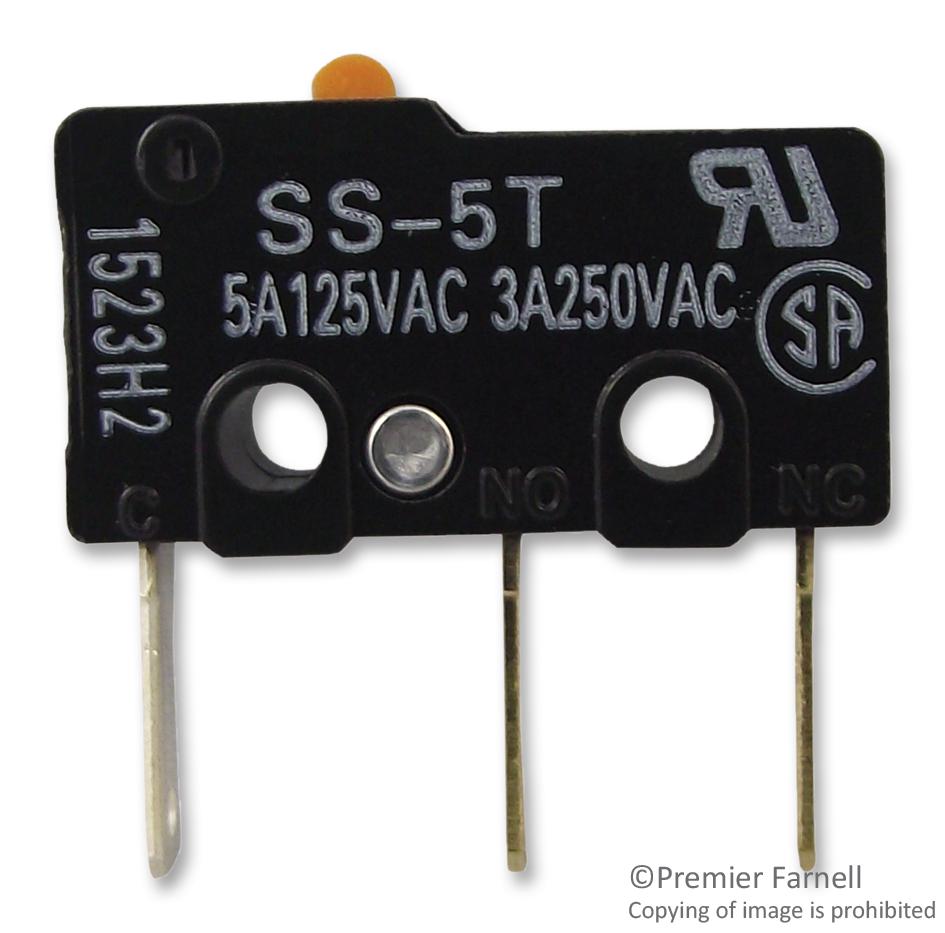

OMRON SS5T Snap Action Switch
This is a snap action switch with a round plunger actuator designed for secure base mounting. It functions as a momentary on switch with a single-pole double-throw circuit configuration and supports a contact current of up to 5 amperes. The switch features multiple actuator options including hinge, simulated roller, and lever models, with various terminal configurations such as solder, PCB, and quick-connect types. It is RoHS compliant, offers high durability with a contact life of at least 30 million operations, and has wide switching capacity from microvoltage to high-capacity loads. Suitable for industrial automation, control panels, and machinery.
OMRON SS5T Snap Action Switch Specifications:
- Rated Voltage: 125 VAC 5A, 250 VAC 10.1A, 30 VDC 0.1A
- Maximum Operating Force: 50g to 259g depending on model
- Contact Resistance: 30-50 mΩ depending on model
- Dielectric Strength: 1,000 VAC between terminals, 1,500 VAC between current-carrying parts and ground
- Operating Speed: 0.1 mm to 1 m/second
- Mechanical Life: Minimum 30 million operations
- Environmental Operating Temp: -25°C to 85°C
- Ingress Protection: IEC IP40
- Mounting: Panel mounting using M2.3 screws or PCB mounting with various terminal options
- Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude
- Shock Resistance: Up to 1,000 m/s² for destruction, 300 m/s² for malfunction
- Degree of Protection: IEC IP40, Class I shock proof
- Service Life: 30 million mechanical, 200,000 electrical operations
- Standards Compliance: UL Recognized, CSA Certified, VDE, TUV Rheinland
Buy the Omron SS5T – Reliable Snap Action Switch for Industrial Applications
Purchase the reliable Omron SS5T snap action switch online today for your industrial automation, machinery, or control applications. With a long service life of over 30 million operations, support for various actuators and terminal types, and compliance with international safety standards, this switch offers excellent durability and performance. Whether you need microvolt switching or high-capacity load handling up to 10.1A, the SS5T provides flexible solutions for control panels, automation systems, and machinery. Easy to mount and operate, it ensures dependable switching performance in demanding environments.
Order your Omron SS5T Series snap action switch today and give your control panels the dependable quality they deserve.
Frequently Asked Questions
Where can I buy OMRON SS5T?
You can click on the BUY or RFQ button to purchase SS5T from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part SS5T?
You can download the SS5T datasheet or visit the OMRON website for support.
Who is the manufacturer of SS5T?
OMRON
