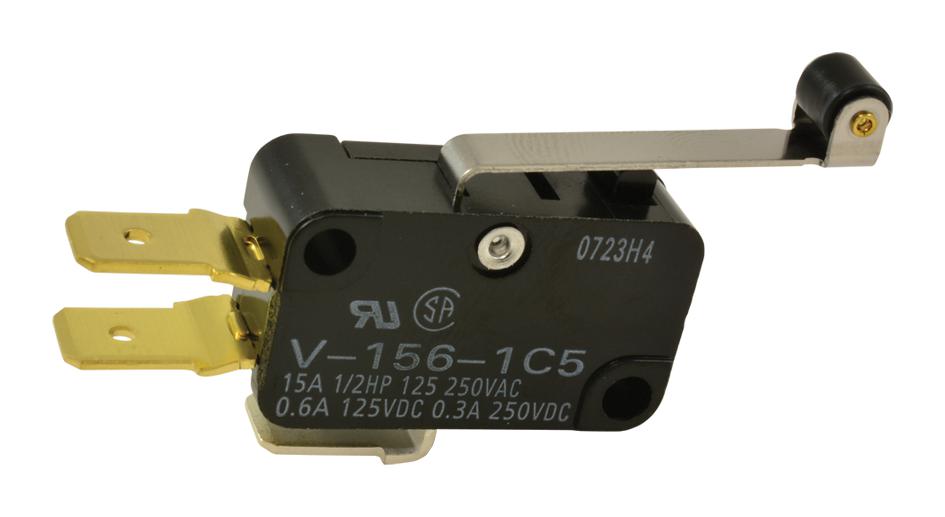

OMRON V1561C5 Miniature Switch
The V-156-1C5 is a single-pole double-throw miniature basic switch featuring a hinge roller lever actuator. It offers high reliability and security, with quick connect terminals, a maximum operating force of 1.96N, and is available in two types of cases: thermoplastic resin and thermosetting resin. This switch is suitable for interrupting current when doors are opened or closed. It has a maximum contact resistance of 15 milliohms and a minimum insulation resistance of 100 megaohms at 500V DC. Primarily used in industrial applications.
OMRON V1561C5 Miniature Switch Specifications:
- Case Material: Thermoplastic or thermosetting resin
- Actuator: Hinge roller lever
- Contact Form: SPDT
- Maximum Operating Force: 1.96N
- Contact Resistance: 15 milliohms
- Insulation Resistance: 100 megaohms at 500V DC
- Mounting Holes: 3.1 mm diameter
- Contact Ratings: 15A at 125/250 VAC
- Temperature Range: -25°C to 105°C
- RoHS Compliant
- Dimensions: Approximate length 23 mm, width 10.8 mm, height 15 mm
Buy the Buy Omron V1561C5 Miniature Switch Part Number V1561C5 Online
Order the Omron V1561C5 miniature switch online now to benefit from high-quality construction, secure quick-connect terminals, and reliable operation. Perfectly suited for industrial and automation applications, this switch offers a maximum operating force of 1.96N, low contact resistance, and robust case materials including thermoplastic and thermosetting resins. With high insulation resistance and compliance with RoHS standards, purchasing online ensures fast delivery and peace of mind for your manufacturing or control system needs.
Get Omron V1561C5 today—built for industrial reliability and secure switching performance.
Frequently Asked Questions
Where can I buy OMRON V1561C5?
You can click on the BUY or RFQ button to purchase V1561C5 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part V1561C5?
You can download the V1561C5 datasheet or visit the OMRON website for support.
Who is the manufacturer of V1561C5?
OMRON
