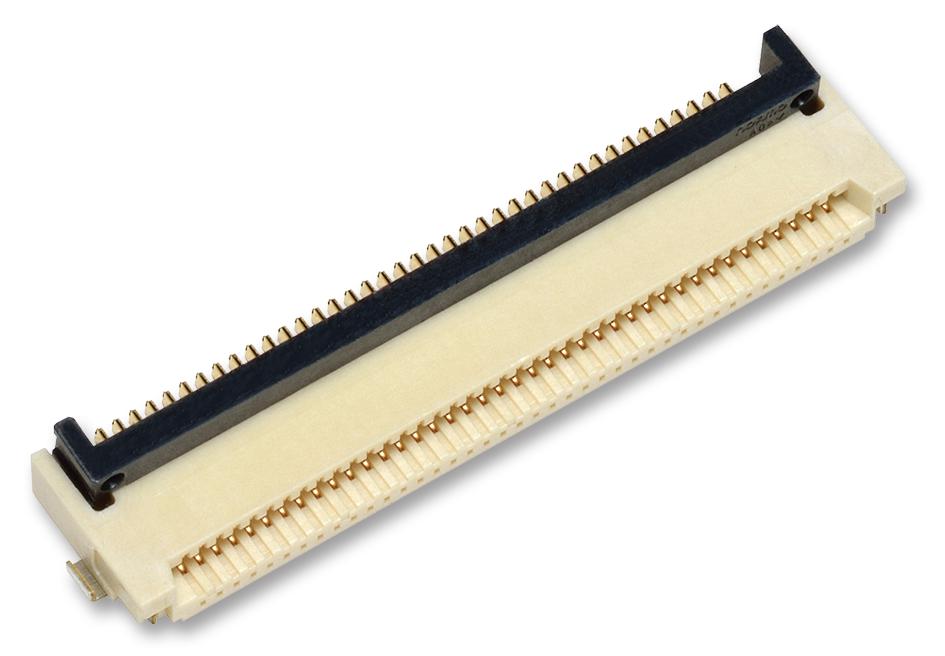

OMRON XF3M40151BR100 FPC/FFC Connector
The XF3M Rotary Backlock Connector series features dual and upper sided contact models with 0.5-mm and 1.0-mm pitch options, ideal for FPC/FFC cable connections up to 0.3 mm thick. Available with gold or tin-plated contacts, these connectors offer reliable insertions, confirm proper locking with a sure lock feel, and are halogen-free and RoHS compliant. Designed with durable materials such as LCP resin and copper alloy, they support rated currents of 0.5 A and voltages up to 50 V, with high contact resistance and dielectric strength for robust performance.
OMRON XF3M40151BR100 FPC/FFC Connector Specifications:
- Pitch options: 0.5 mm and 1.0 mm
- Model availability: dual-sided or upper sided contacts
- Contact plating: gold or tin-plated
- Rated current: 0.5 A AC/DC
- Rated voltage: 50 V AC/DC
- Contact resistance: 50 mΩ max. (at 20 mV DC, 100 mA)
- Insulation resistance: 100 MΩ min. (at 250 V DC)
- Dielectric strength: 250 V AC for 1 min.
- Housing: LCP resin (UL94 V-0)
- Materials: Copper alloy, nickel or gold plating
- Applicable FPC/FFC thickness: 0.3 mm
- RoHS compliant, halogen-free (900 ppm Br, 900 ppm Cl, 1500 ppm Br+Cl max.)
- Connector reliability: insertion durability 10-20 times, depending on model
- Reel quantities: 100 pcs, 1500 pcs per reel
- Operating temperature: 30°C to 85°C
Buy the Buy OMRON XF3M40151BR100 Part Number XF3M40151BR100 Online
Secure your electronics with the OMRON XF3M connector series, featuring reliable dual-sided and upper sided contacts with 0.5-mm and 1.0-mm pitch options. Crafted from high-quality LCP resin and copper alloy, these connectors support rated currents of 0.5 A and voltages up to 50 V, ensuring optimal performance. Halogen-free and RoHS compliant, they provide safe, environmentally friendly connections. Available on our online store in reels up to 1500 pcs, these connectors guarantee efficient installation and long-lasting durability for professional electronic projects.
Order your OMRON Series XF3M-4015-1B or XF3M-4015-1D connector today and ensure secure, reliable FPC/FFC cable connections with high durability and compliance.
Frequently Asked Questions
Where can I buy OMRON XF3M40151BR100?
You can click on the BUY or RFQ button to purchase XF3M40151BR100 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part XF3M40151BR100?
You can download the XF3M40151BR100 datasheet or visit the OMRON website for support.
Who is the manufacturer of XF3M40151BR100?
OMRON
