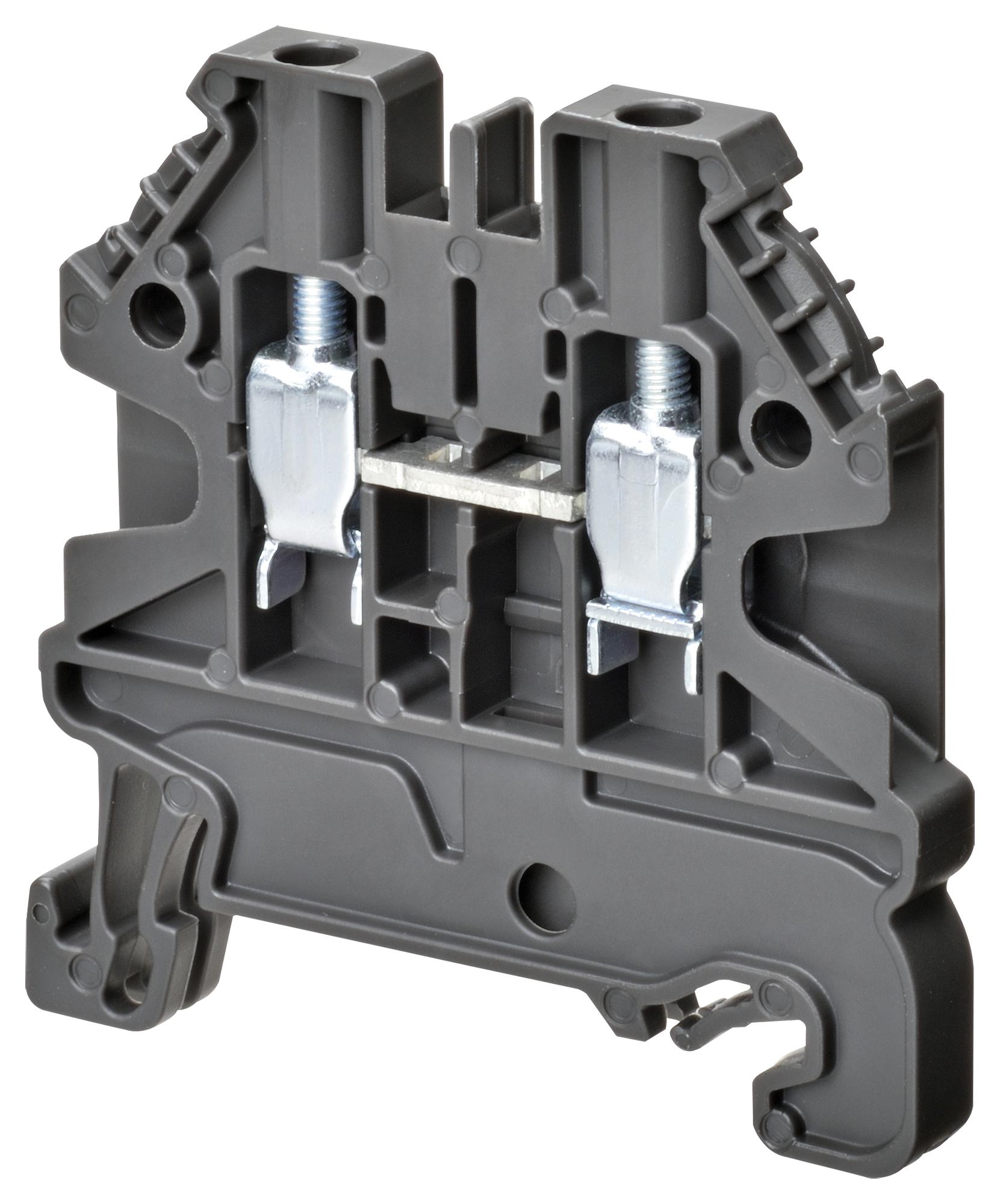

OMRON XW5TS25111 DIN Track Terminal Block
The XW5T Series DIN Track Terminal Blocks with Screw Terminals are robust control panel components designed for secure wiring connections. These terminal blocks support wire sizes from 2.5 to 150 mm?, featuring configurations with fuses and disconnect options. Suitable for industrial automation, they ensure reliable electrical connection and safety. Compatible with DIN rails EN 60715-35x7.5 and EN 60715-35x15, they are rated for IEC voltage of 800V and current of 63A, making them ideal for control and power distribution in various electrical installation environments.
OMRON XW5TS25111 DIN Track Terminal Block Specifications:
- Nominal Cross Section: 2.5mm? to 150mm? depending on model.
- Wire Range: AWG22 to AWG10 for screw terminals.
- Maximum Conductor Cross Section: 6mm? for solid or stranded wire.
- Minimum Conductor Cross Section: 0.14mm? for flexible stranded wires.
- Wire Strip Length: 8mm to 30mm depending on model.
- Tightening Torque: 0.5 Nm to 1.2 Nm based on terminal size.
- Dimensions: Varies from approximately 42mm to 88.7mm in length.
- Mounting: DIN rail EN 60715-35x7.5 or EN 60715-35x15.
- Rated Voltage: IEC 800V, UL 600V to 300V.
- Rated Current: Ranges from 10A to 63A depending on model.
- Temperature Range: -40°C to +60°C with no condensation or icing.
- Material: PA (Polyamide), UL 94V-0 rating.
- Standards: IEC 60947-7-1, UL 1059, cULus compliance.
Buy the Omron Series DIN Track Terminal Blocks with Screw Terminals: XW5TS25111
Purchase the Omron Series DIN Track Terminal Blocks with Screw Terminals online today to enhance your electrical control panel installations. These terminal blocks support wire sizes from 2.5 to 150 mm?, rated for IEC 800V and 63A, with fuses and disconnect options available. Easy to mount on DIN rails EN 60715-35x7.5 or EN 60715-35x15, they ensure safe, reliable connections across various industrial applications. Order now for quick delivery and professional-grade connection solutions.
Order your Omron Series DIN Track Terminal Blocks with Screw Terminals today and ensure reliable, secure wiring for your control panel projects.
