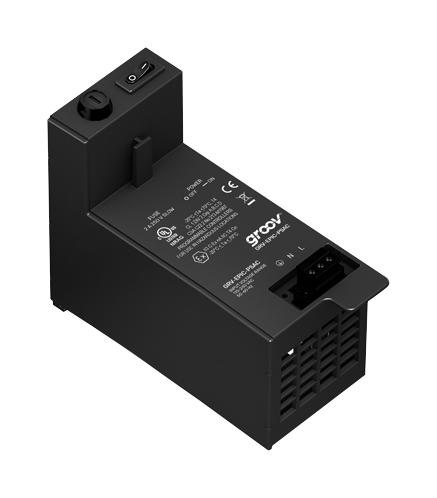

OPTO 22 GRVEPICPSAC Power Supply Converter Adapter
The Opto 22 GRV-EPIC-PSAC power supply is a crucial component for Opto 22 groov EPIC systems, providing reliable AC power to the chassis, processor, and I/O modules. It's designed for seamless integration with the groov EPIC processor and chassis, offering a modern and sturdy housing with a built-in fuse and convenient ON/OFF power switch. The unit is UL/cUL listed and compliant with ATEX, Low Voltage, and EMC CE directives, ensuring safe and efficient operation in various industrial environments. Ideal for applications requiring robust and reliable power distribution within automation and control systems.
OPTO 22 GRVEPICPSAC Power Supply Converter Adapter Specifications:
- Rated Power (70 °C): 60 W
- Input Voltage Range: 110 to 240 VAC nominal, 100 to 264 VAC max.
- Typical Input Current (rated load): 0.6 A at 115 VAC
- Inrush Current: 30 A at 115 VAC
- Input Frequency Range: 50 Hz to 60 Hz
- Power Factor: >0.98 at 115 VAC, full load
- Wire Size: 28–12 AWG
- Torque (connector screw): 4.4 in-lb
- Fuse: 2 A 250 V Slow
- Operating Ambient Temperature: -20 °C to 70 °C
- Altitude Temperature Derating: 5 °C per 1000 m over 2000 m
- MTTF (minimum, 25 °C): 650 khrs
- Agency Approvals: UL/cUL (Class 1 Div. 2), CE, ATEX (Category 3, Zone 2), RoHS, DFARS
- Warranty: 30 months
Buy the GRV-EPIC-PSAC OPTO 22 Power Supply Converter Adapter | myMectronic
Purchase the Opto 22 GRV-EPIC-PSAC power supply securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy OPTO 22 GRVEPICPSAC?
You can click on the BUY or RFQ button to purchase GRVEPICPSAC from an authorized OPTO 22 distributor.
How do I troubleshoot issues or seek technical support for part GRVEPICPSAC?
You can download the GRVEPICPSAC datasheet or visit the OPTO 22 website for support.
Who is the manufacturer of GRVEPICPSAC?
OPTO 22
