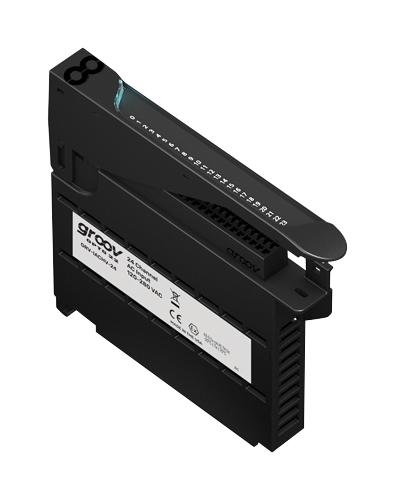

OPTO 22 GRVIACHV24 24 Channel AC Input Module
The Opto 22 GRV-IACHV-24 is a robust 24-channel AC input module that seamlessly integrates into the _groov_ EPIC system. It translates electrical signals from field devices (sensors and actuators) into digital language for computer monitoring and control. Designed for industrial applications, this module offers 180–280 VAC input, field-to-logic isolation, and a lifetime warranty, ensuring reliable performance and long-term value. It simplifies wiring with a top-mounted connector and provides a touch-sensitive pad for easy module information access.
OPTO 22 GRVIACHV24 24 Channel AC Input Module Specifications:
- Number of Channels: 24
- Nominal Input Voltage Range (RMS): 180–280 VAC
- Turn-on Voltage: 180 VAC
- Turn-off Voltage: 100 VAC
- Input Impedance (± 5%): 532 kOhms
- Operating Frequency: 40 Hz to 400 Hz
- Isolation (field-to-logic): 300 VAC, 1500 V Transient
- Isolation (channel-to-channel): N/A
- Chassis Power Consumption: 1.0 W
- Wire Size: 28–14 AWG
- Torque, connector screw: 2.5 in-lb (0.28 N-m)
- Torque, hold-down screw: 3.5 in-lb (0.4 N-m)
- Temperature (operating): -20 °C to +70 °C
- Temperature (storage): -40 °C to +85 °C
- Relative Humidity (non-condensing): 5–95%
- Agency Approvals: CE, ATEX(Category 3, Zone 2), RoHS; DFARS; CB Scheme
