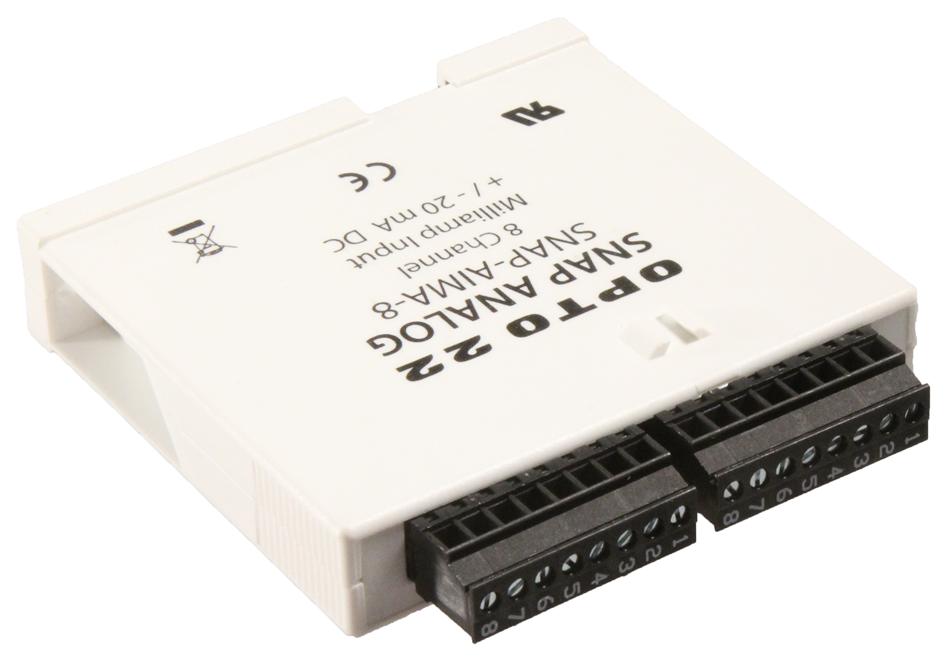

OPTO 22 SNAPAIMA8 analog current input module
The SNAP-AIMA-8 is an 8-channel analog current input module designed for precise measurement of -20 to 20 mA signals. It is intended for use with SNAP PAC controllers in industrial and process automation systems. The module features factory calibration, out-of-range indication, high resolution (0.8 μA), and a maximum data update rate of 0.28 seconds. It is suitable for accurate current sensing applications like HVAC, manufacturing, and control processes, with individual testing and onboard microprocessor for intelligent operations. It requires no external power supply for measurement functions.
OPTO 22 SNAPAIMA8 analog current input module Specifications:
- Input Ranges: -20 to 20 mA
- Number of Channels: 8
- Resolution: 0.8 μA
- Maximum Data Update Rate: 0.28 seconds
- Accuracy: 0.05% at 10 μA
- Input Share: Common reference, required at start/end of loop
- Isolation: Module electrically isolated from other modules
- Power Requirements: No external power required for measurement
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -40°C to 85°C
- Wire Size: 22 to 14 AWG
- Torque, hold-down screws: 4 in-lb (0.45 N-m)
- Torque, connector screws: 5.26 in-lb (0.6 N-m)
- Agency Approvals: UL (pending), CE (pending)
- Warranty: Lifetime
Buy the Opto 22 Series SNAP-AIMA8: -20 to 20 mA Analog Current Module
Purchase the Opto 22 Series SNAP-AIMA8 online today to improve your process automation with high-resolution current sensing. This eight-channel module is factory calibrated, providing precise -20 to 20 mA measurements without external power. Its onboard microprocessor offers intelligent features like out-of-range indication and fast data updates, making it perfect for HVAC, manufacturing, and control applications. Easy to install with standard wiring and robust construction, it ensures dependable long-term operation in industrial environments. Get yours now and upgrade your system's measurement accuracy.
Order your Opto 22 Series SNAP-AIMA8 today and enhance your industrial systems with accurate current measurement and reliable operation.
Frequently Asked Questions
Where can I buy OPTO 22 SNAPAIMA8?
You can click on the BUY or RFQ button to purchase SNAPAIMA8 from an authorized OPTO 22 distributor.
How do I troubleshoot issues or seek technical support for part SNAPAIMA8?
You can download the SNAPAIMA8 datasheet or visit the OPTO 22 website for support.
Who is the manufacturer of SNAPAIMA8?
OPTO 22
