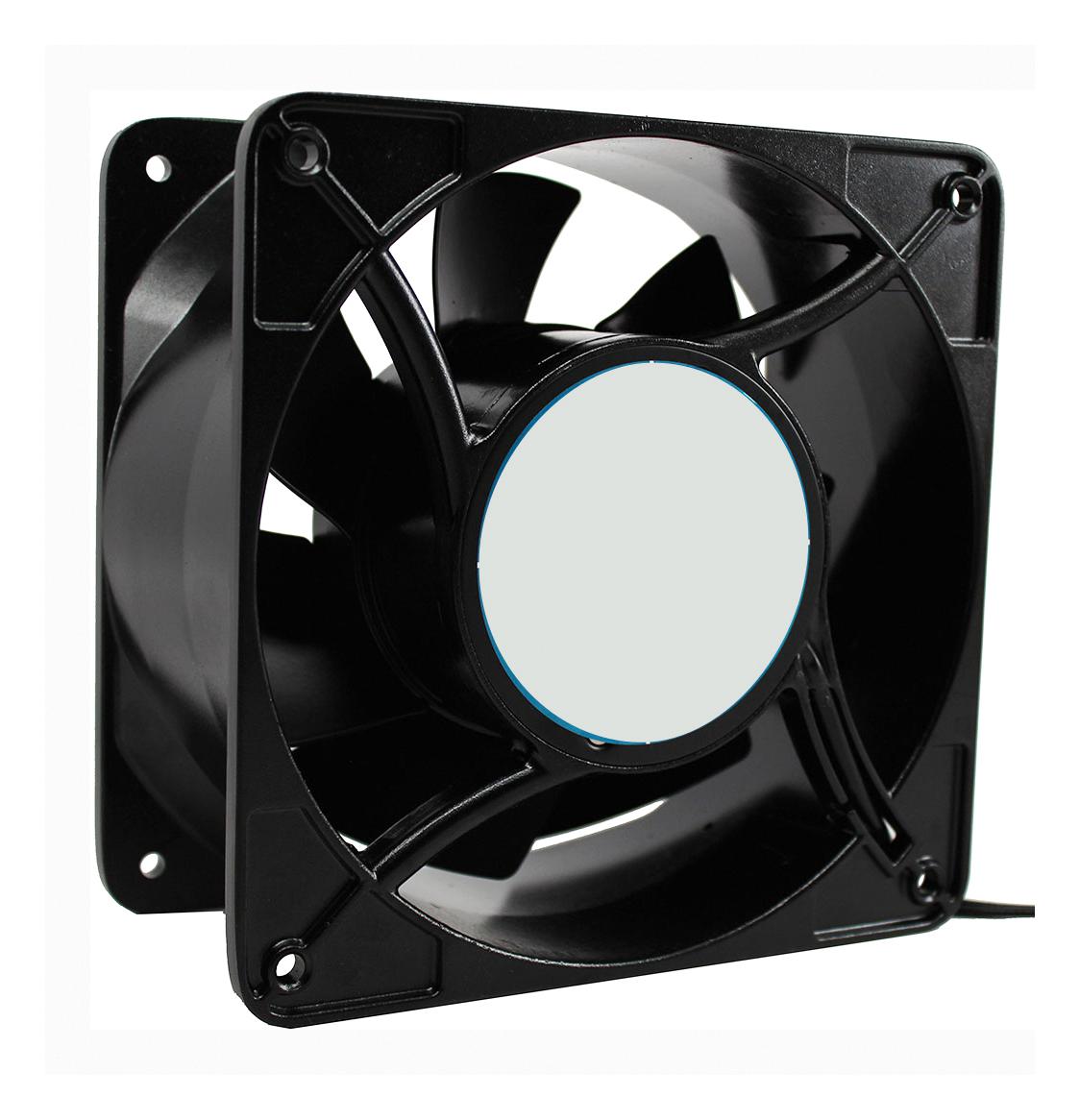

Orion Fans OA180AP221TB1868 Industrial Cooling Fan
This AC fan operates at 115V or 230V with a compact size of 176x89mm, featuring a die-cast aluminum frame and steel, 7-blade impeller for efficient airflow. It supports dual ball bearings and a lifespan of up to 50,000 hours. The fan accommodates various mounting options with mounting holes and terminal connections, suitable for industrial applications. It operates within -30°C to +80°C, ensuring robust performance in demanding environments. Its high static pressure and airflow capacity make it ideal for cooling and ventilation systems requiring reliable, durable components.
Orion Fans OA180AP221TB1868 Industrial Cooling Fan Specifications:
- Voltage: 115 VAC or 230 VAC, 60 Hz
- Power: 80 W at 230V, 50 W at 115V
- Frequency: 60 Hz
- Speed: 3250 RPM
- Impeller: Steel, 7 blades, all-metal
- Frame: Die-cast aluminum, black
- Dimensions: 176x89mm (7"x3.5")
- Mounting holes: 4x2-05.5±0.3mm (0.22")
- Lead wires: 18 AWG or terminal connection
- Connection hole: 2.4x1.3mm, M5x0.8 depth 5-6mm
- Operating temperature: -30°C ~ +80°C
- Storage temperature: -40°C ~ +100°C
- Weight: 4.08 lbs
- Bearings: Dual ball bearings
- Dielectric Strength: 1500 VAC/min
- Insulation Resistance: Over 100 MΩ at DC 500V
- Life expectancy: 50,000 hours (L10 at 55°C)
- Airflow: 380 CFM
- Noise level: 63 dB
- Static pressure: 0.76"H2O
Buy the Knight Series AC Fan: 115/230V Industrial Cooling Fan OA180AP221TB1868
Purchase the Knight Series OA180AP221TB1868 AC fan online today to enjoy fast shipping and secure checkout. This reliable industrial fan features 115V or 230V operation, dual ball bearings, and a durable die-cast aluminum frame. With a steel impeller, high static pressure, and long lifespan of up to 50,000 hours, it’s perfect for demanding cooling applications. Ensure optimal airflow of 380 CFM and operate efficiently within -30°C to +80°C environments. Get yours now for consistent, high-performance cooling solutions.
Order your Knight Series OA180AP221TB1868 AC fan today and ensure reliable cooling performance with durable design and high airflow capacity.
