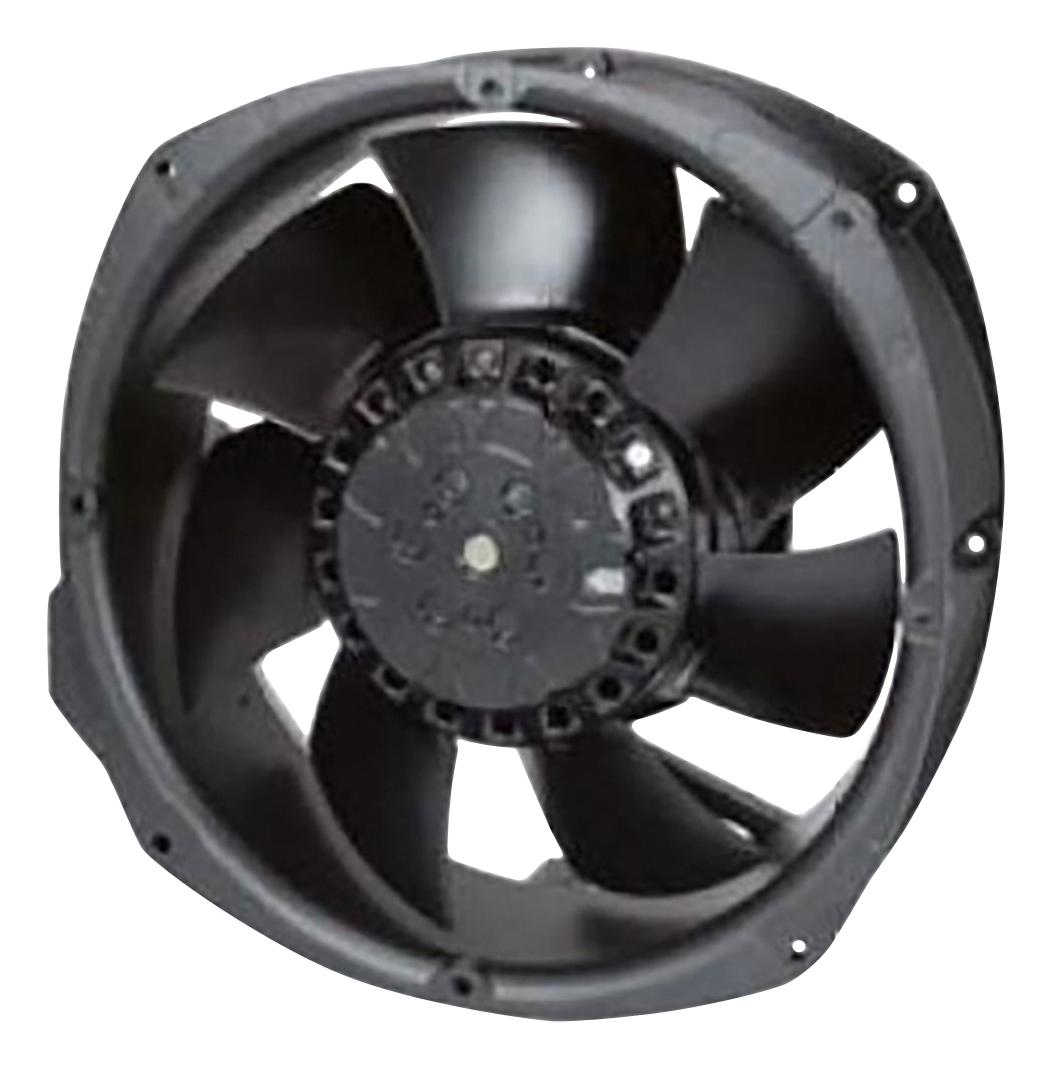

Orion Fans OA200AP221TB1869K Industrial Cooling Fan
The OA200AP Metal Series AC fan features a robust 230VAC input voltage, durable die-cast aluminum frame with black finish, and an efficient all-metal, seven-blade steel impeller. It uses a single-phase, thermally protected induction motor with an IP69K rating for superior water and dust resistance. Mounted with terminal ball bearings, it measures 220 x 72 mm (8.7 x 2.8 inches), providing reliable airflow and quiet operation at 68 dB. Suitable for industrial cooling applications, this fan offers high durability and effective performance in demanding environments.
Orion Fans OA200AP221TB1869K Industrial Cooling Fan Specifications:
- Input Voltage: 230VAC
- Power: 105W
- Frequency: 60Hz
- Rated Speed: 3300 RPM
- Airflow: 485 CFM
- Noise Level: 68 dB
- Frame Material: Die-cast aluminum, black finish
- Impeller Material: Steel, 7 blades
- Mounting: Terminal ball bearings
- Size: 220 x 72 mm (8.7 x 2.8 inches)
- Protection: IP69K
- Operating Temperature: -30°C to +80°C
- Storage Temperature: Not specified
- Connection: Lead wires 18 AWG or terminal
- Insulation Resistance: Over 100MQ at DC 500V
- Dielectric Strength: 1500VAC/min
- Bearing System: Dual ball bearings
- Life Expectancy: 50,000 hours at 55°C
- Protection Degree: IP69K
- Weight: 4.63 lbs
Buy the Knight Electronics OA200AP – Reliable AC Fan for Industrial Applications
Purchase the Knight Electronics OA200AP metal series AC fan online today for reliable cooling performance in demanding industrial environments. Featuring a sturdy die-cast aluminum frame, all-metal steel impeller, and IP69K protection, this fan ensures long-lasting durability against water, dust, and high temperatures. With a compact size of 220 x 72 mm, it offers efficient airflow at 485 CFM and operates quietly at 68 dB. Ideal for HVAC, manufacturing, and automation cooling applications, this fan guarantees dependable service and easy online acquisition.
Get Knight Electronics OA200AP today—built for precision, durability, and high-protection industrial cooling.
Frequently Asked Questions
Where can I buy Orion Fans OA200AP221TB1869K?
You can click on the BUY or RFQ button to purchase OA200AP221TB1869K from an authorized Orion Fans distributor.
How do I troubleshoot issues or seek technical support for part OA200AP221TB1869K?
You can download the OA200AP221TB1869K datasheet or visit the Orion Fans website for support.
Who is the manufacturer of OA200AP221TB1869K?
Orion Fans
