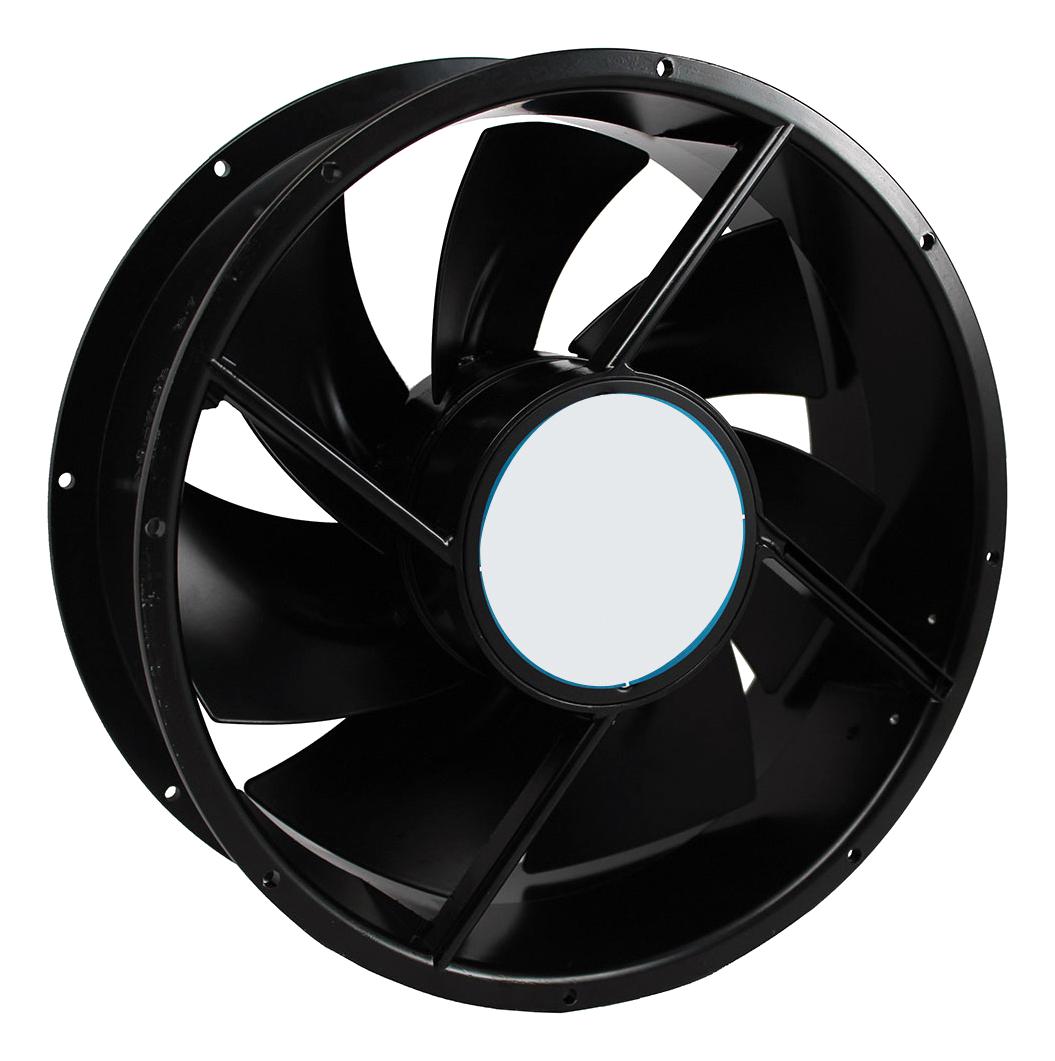

Orion Fans OA2547AP221TB1868 Industrial AC Fan
This high-performance AC fan operates efficiently at 115V and 230V, featuring a durable die-cast aluminum frame and steel impeller with 7 blades. Designed for industrial applications, it offers an airflow of 1000 CFM at a rated speed of 3250 RPM, and has dual ball bearings for extended life. The fan's rated input power is 105W, with a noise level of 70 dB, making it suitable for environments requiring reliable air circulation. It includes lead wires or terminal connections, with a protective IP68 rating for harsh conditions and an operating temperature range of -30°C to +80°C.
Orion Fans OA2547AP221TB1868 Industrial AC Fan Specifications:
- Voltage: 115VAC or 230VAC
- Power: 105W
- Frequency: 60Hz
- Speed: 3250 RPM
- Airflow: 1000 CFM
- Noise Level: 70 dB
- Frame Material: Die-cast aluminum, black
- Impeller: Steel, 7 blades
- Operating Temperature: -30°C to +80°C
- Storage Temperature: -40°C to +100°C
- Lead Wires: AWG#20, 290-340mm or terminal connection
- Ground Hole: M5 x 6mm depth
- Connection: Push-in flat pins or terminal
- Bearing System: Dual ball bearings
- Dielectric Strength: 1500VAC/min
- Insulation Resistance: Over 100MQ at DC 500V
- Life Expectancy: 50,000 hours (L10 at 55°C)
- Protection Class: IP68
- Weight: 5.6 lbs
Buy the Knight Electronics 48905 – Reliable Industrial AC Fan for Cooling Systems
Purchase the reliable industrial AC fan online today from Knight Electronics. Featuring a durable die-cast aluminum frame, steel impeller with 7 blades, and dual ball bearings, this fan provides a high airflow of 1000 CFM at 3250 RPM. It operates efficiently at 115V or 230V with a power of 105W, ensuring robust cooling in demanding environments. Its IP68 rating and wide temperature range make it suitable for harsh industrial conditions. Order now for fast, secure delivery and enhance your cooling systems with this dependable fan.
Get Knight Electronics 48905 today—built for precision, long-lasting durability, and efficient cooling performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Orion Fans OA2547AP221TB1868?
You can click on the BUY or RFQ button to purchase OA2547AP221TB1868 from an authorized Orion Fans distributor.
How do I troubleshoot issues or seek technical support for part OA2547AP221TB1868?
You can download the OA2547AP221TB1868 datasheet or visit the Orion Fans website for support.
Who is the manufacturer of OA2547AP221TB1868?
Orion Fans
