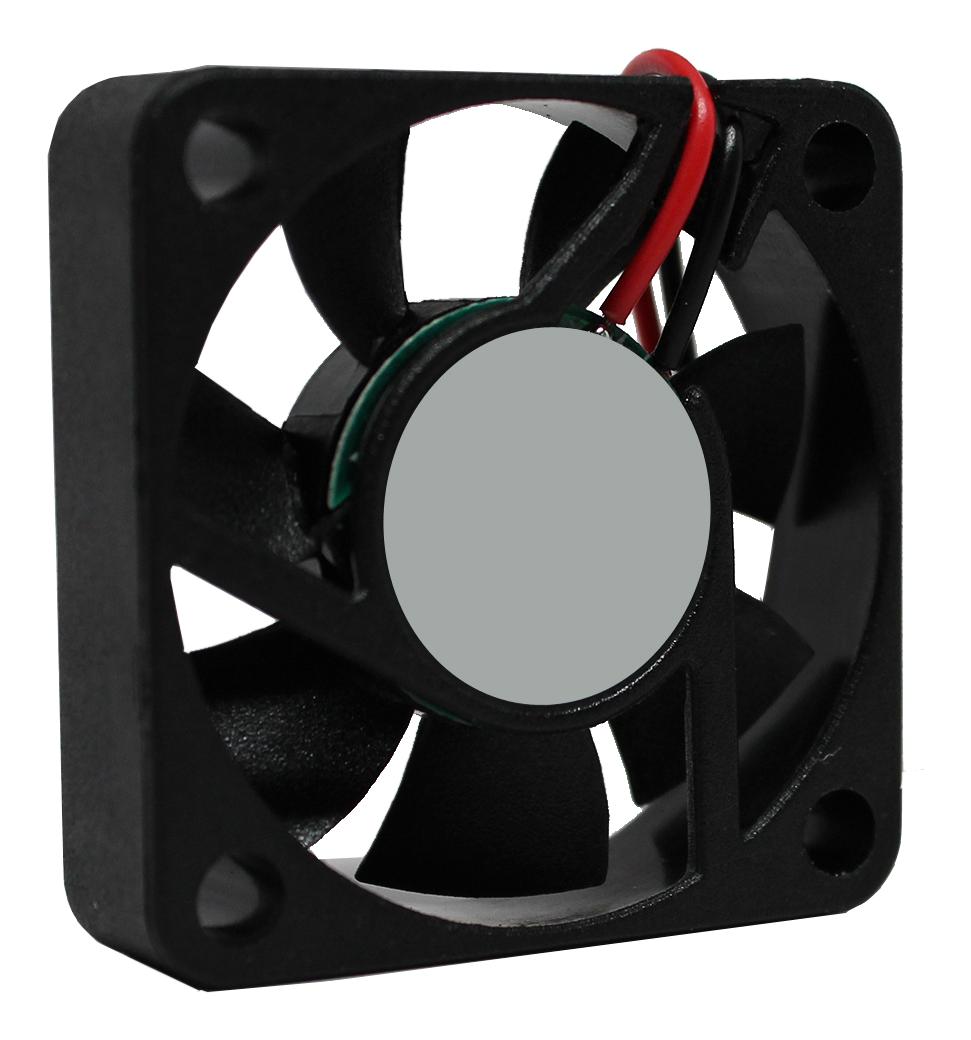

Orion Fans OD401005HB Cooling Fan
The DC fan series features 40 x 10mm sizes available in 5V, 12V, and 24V versions, designed for reliable cooling applications. These brushless, sleeve or ball bearing fans operate efficiently within a temperature range of -40°C to +80°C, with a life expectancy of up to 60,000 hours for ball bearings and 30,000 hours for sleeve bearings at 45°C. They include options like tachometers, PWM control, and alarm signals, and are constructed with UL94V-0 flame-retardant PBT plastic. Ideal for industrial, electronics, and cooling solutions, these fans provide high static pressure and airflow, ensuring optimal performance in various environments.
Orion Fans OD401005HB Cooling Fan Specifications:
- Size: 40 x 10mm
- Voltage Options: 5V, 12V, 24V DC
- Current Range: 0.06A to 0.10A depending on model
- Operating Temperature: -40°C to +80°C
- Lifespan: Up to 60,000 hours for ball bearings, 30,000 hours for sleeve bearings at 45°C
- Material: PBT plastic with UL94V-0 flame retardant
- Bearing Types: Sleeve and Ball bearing options
- Airflow: Up to 13.2 CFM depending on model
- Static Pressure: Up to 0.10 H2O
- Insulation Resistance: 7 MΩ at 500V DC
- Dielectric Strength: 500 VAC, 1 minute
- Weight: Approximate 0.04 lbs
- Additional Features: Tachometer, PWM, Alarm signals, Auto restart
- Connector: 2x Lead wires (26 AWG)
Buy the Orion Fans Series 40 x 10mm Cooling Fan: OD401005HB
Order Orion Fans OD401005HB series 40 x 10mm cooling fans online today for reliable thermal management in electronics and industrial applications. These high-quality brushless DC fans feature options with sleeve or ball bearings, PWM control, and tachometer signals, ensuring optimal cooling performance across a wide temperature range. With a lifespan of up to 60,000 hours, they deliver consistent airflow and static pressure, making them suitable for demanding environments. Enjoy fast shipping, secure checkout, and expert support when purchasing these durable cooling solutions online.
Get Orion Fans OD401005HB today—built for high-performance cooling with long-lasting durability and efficient airflow.
Frequently Asked Questions
Where can I buy Orion Fans OD401005HB?
You can click on the BUY or RFQ button to purchase OD401005HB from an authorized Orion Fans distributor.
How do I troubleshoot issues or seek technical support for part OD401005HB?
You can download the OD401005HB datasheet or visit the Orion Fans website for support.
Who is the manufacturer of OD401005HB?
Orion Fans
