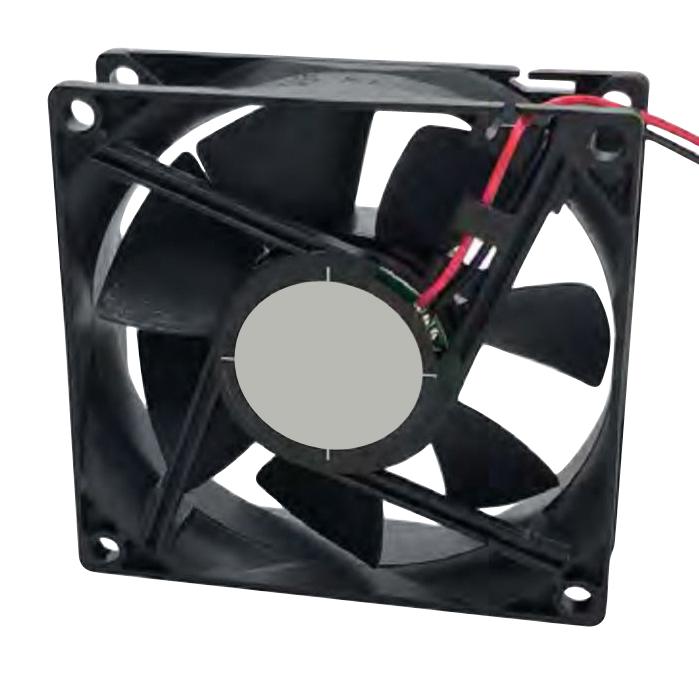

Orion Fans OD802524HB01A DC Fan
The OD8025 series DC fan is available in 5V, 12V, and 24V configurations, designed with a durable PBT frame and impeller made from UL94V-0 plastic for safety. It features dual ball bearings for extended lifespan up to 65,000 hours at 45°C and incorporates a brushless, polarity-protected motor with thermal speed control. The fan operates within a temperature range of -20°C to +75°C, providing reliable airflow and static pressure for electronic cooling applications. Multiple models offer varying speeds, airflow, and noise levels to suit diverse cooling needs.
Orion Fans OD802524HB01A DC Fan Specifications:
- Voltage Options: 5V, 12V, 24V DC
- Speed Range: 1600-3400 RPM depending on model
- Airflow: Up to 44 CFM
- Noise Level: Up to 44 dB
- Power Consumption: 0.04 - 0.23 Watts
- Bearing System: Dual ball bearing or sealed sleeve bearing options
- Material: PBT frame, UL94V-0 plastic impeller
- Operating Temperature: -20°C to +75°C
- Storage Temperature: -40°C to +80°C
- Insulation Resistance: >10 MΩ at 500VDC
- Life Expectancy: Up to 65,000 hours at 45°C with sleeve bearing, 50,000 hours with sealed bearing
- IP Rating: IP55
- Connection: 2x 24 AWG lead wires
- Electrical: Polarity protected, tachometer (FG) output for speed monitoring
Buy the Buy Orion Fans OD8025 Series Part Number OD802524HB01A Online
Purchase the Orion Fans OD8025 Series DC fan online today and enjoy superior cooling performance, extended lifespan up to 65,000 hours, and quiet operation with low noise levels. These fans are ideal for electronic enclosures, industrial equipment, and ventilation systems, providing reliable airflow in various applications. Easy to install with flexible voltage options. Order now and ensure your equipment stays cool and operates efficiently with this durable, high-quality cooling fan available at competitive prices with fast shipping.
Buy Orion Fans OD8025 Series Part Number OD802524HB01A now and experience unmatched reliability with high airflow and long lifespan for electronic cooling.
Frequently Asked Questions
Where can I buy Orion Fans OD802524HB01A?
You can click on the BUY or RFQ button to purchase OD802524HB01A from an authorized Orion Fans distributor.
How do I troubleshoot issues or seek technical support for part OD802524HB01A?
You can download the OD802524HB01A datasheet or visit the Orion Fans website for support.
Who is the manufacturer of OD802524HB01A?
Orion Fans
