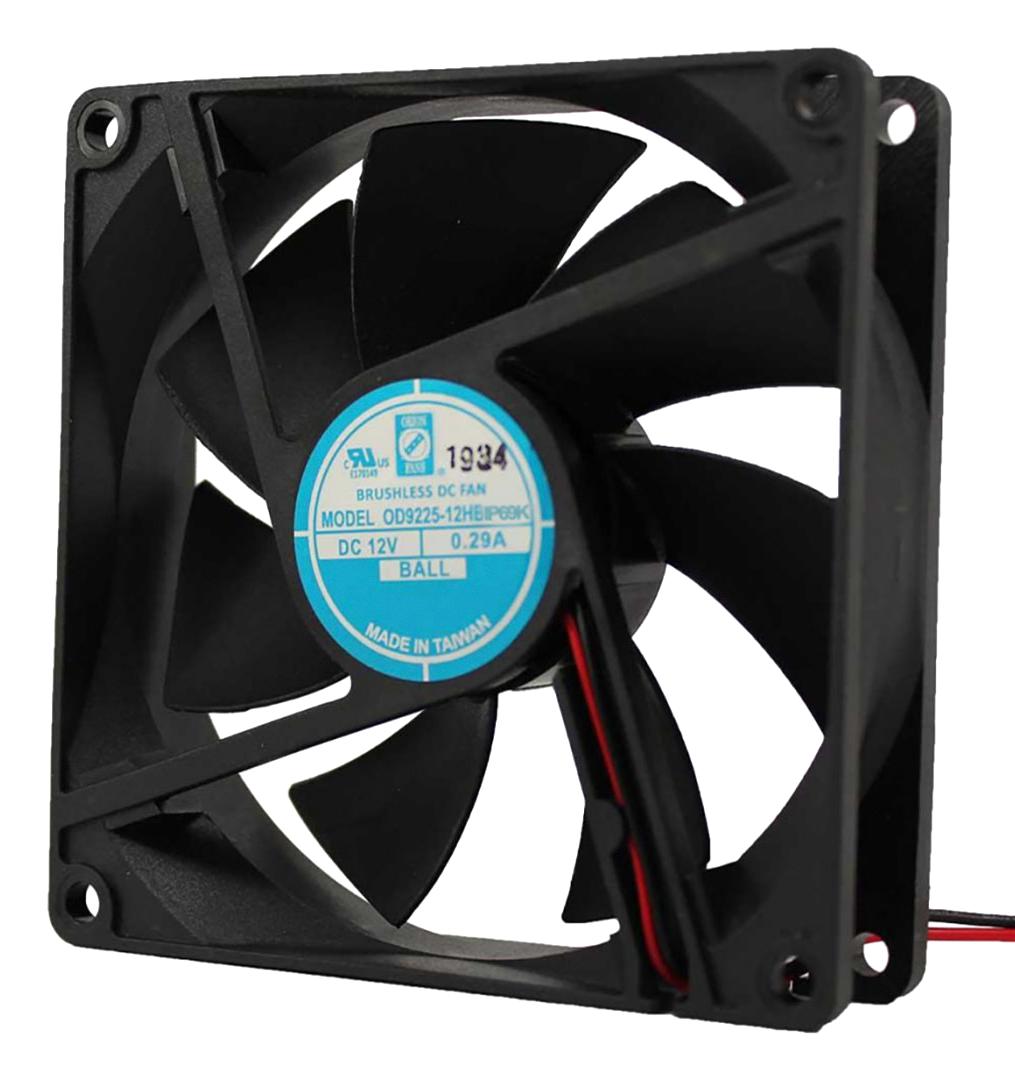

Orion Fans OD922512HBIP69K Axial Fan
The OD9225-IP69K series axial fan is engineered for tough environments, featuring dual ball bearings for enhanced durability and a long lifespan of approximately 70,000 hours. Operating at 12V, 24V, or 48V DC, it connects via 24 AWG lead wires. Crafted with a UL94 V-0 flame-retardant PBT plastic frame, this fan is suitable for high-pressure, washdown situations thanks to its IP69K ingress protection. Its brushless motor offers auto restart, auto cut-off, polarity, and electronic protection, ensuring reliable cooling in demanding industrial and commercial applications.
Orion Fans OD922512HBIP69K Axial Fan Specifications:
- Voltage Options: 12V DC, 24V DC, 48V DC
- Power Consumption: 3.0W at 12V, 3.5W at 24V, 43W at 48V
- Current: 0.29A at 12V, 0.18A at 24V, 0.094A at 48V
- Rated Speed: 2900 RPM
- Airflow: 50 CFM
- Static Pressure: 0.24 inches H2O
- Operating Temperature Range: -20°C to +65°C
- Storage Temperature: -55°C to +75°C
- Frame Material: PBT plastic, UL94 V-0 flame retardant
- Impeller Material: PBT plastic
- Ingress Protection: IP69K for water and dust resistance
- Connection: 2x Lead Wires, 24 AWG, 300mm length
- Bearing System: Dual ball bearings for durability
- Life Expectancy: Approximately 70,000 hours at 40°C
- Insulation Resistance: 10 MΩ between lead wires (500 VDC)
- Dielectric Strength: 500 VAC/min
- Weight: 0.21 lbs
- Certifications: UL, CSA, TUV
Buy the Knight Electronics Series OD9225 Axial Fan: OD922512HBIP69K
Purchase the durable OD9225-IP69K series axial fan online today to benefit from high-pressure, washdown-resistant cooling. Built with dual ball bearings, IP69K ingress protection, and a brushless motor, this fan guarantees long-lasting performance in industrial and harsh environments. With flexible voltage options of 12V, 24V, or 48V, connect with ease using the 24 AWG lead wires. Trust this high-quality, UL94 V-0 flame-retardant plastic fan for reliable operation and extended life expectancy of approximately 70,000 hours under demanding conditions.
Order your Knight Electronics Series OD9225 axial fan today and ensure reliable cooling in demanding environments with high ingress protection.
Frequently Asked Questions
Where can I buy Orion Fans OD922512HBIP69K?
You can click on the BUY or RFQ button to purchase OD922512HBIP69K from an authorized Orion Fans distributor.
How do I troubleshoot issues or seek technical support for part OD922512HBIP69K?
You can download the OD922512HBIP69K datasheet or visit the Orion Fans website for support.
Who is the manufacturer of OD922512HBIP69K?
Orion Fans
