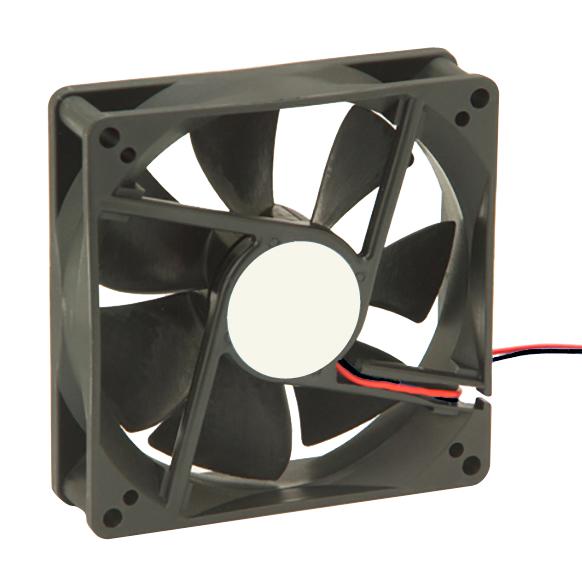

Orion Fans OD922512LB DC Cooling Fan
The OD9225 Series 92x25 DC fan features a compact design with a weight of approximately 0.22 lbs, made from UL94V-0 plastic. It offers high airflow up to 53 CFM at 2900 RPM and operates within a voltage range of 12V, 24V, or 48V, with an IP55 protection rating. The fan utilizes dual ball bearings, providing a life expectancy of over 60,000 hours at 40°C. It includes features such as thermal control, tachometer (FG), alarm, and polarity protection, suitable for industrial cooling and electronic enclosure applications. Its operating temperature spans from -10°C to +70°C, ensuring reliable performance in varying environments.
Orion Fans OD922512LB DC Cooling Fan Specifications:
- Frame Size: 92x25 mm (3.62 x 1.00 inches)
- Material: PBT UL94V-0 plastic
- Weight: approximately 0.22 lbs
- Motor Type: Brushless DC with auto restart
- Bearing System: Dual Ball Bearings
- Life Expectancy: over 60,000 hours at 40°C
- Operating Temperature Range: -10°C to +70°C
- Insulation Resistance: > 10 Megaohms between lead wires and frame at 500VDC
- Dielectric Strength: 500VAC for 1 minute leakage < 500 MicroAmps
- Airflow: up to 53 CFM depending on model
- Noise Level: 31-40 dB depending on model
- Voltage Options: 12V, 24V, 48V
- Current: 0.05A to 0.29A depending on model
- Protection: IP55
- Features: Thermal control, tachometer, alarm, polarity protected
Buy the Knight Electronics 0D9225-12LB – Reliable Cooling Fan for Industrial Applications
Order the DC cooling fan online today to ensure your electronic or industrial cooling needs are met with reliable, high-performance airflow. This compact fan features dual ball bearings for extended lifespan, thermal control for safety, and an IP55 rating for dust and water resistance. Available in 12V, 24V, and 48V options, it provides high airflow with low noise and energy consumption. Whether for cooling electronic enclosures, industrial equipment, or automation systems, this fan offers durable and efficient performance. Buy now for quick delivery and installation.
Buy Knight Electronics OD9225-12LB now and experience unmatched reliability and performance in industrial cooling and electronic enclosure applications.
Frequently Asked Questions
Where can I buy Orion Fans OD922512LB?
You can click on the BUY or RFQ button to purchase OD922512LB from an authorized Orion Fans distributor.
How do I troubleshoot issues or seek technical support for part OD922512LB?
You can download the OD922512LB datasheet or visit the Orion Fans website for support.
Who is the manufacturer of OD922512LB?
Orion Fans
