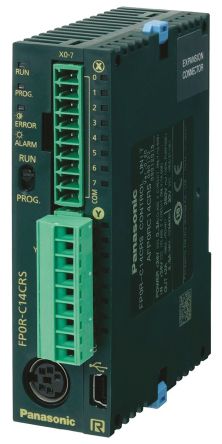

PANASONIC / SUNX AFP0RC14CRS Pocket-size Compact Controller
The Panasonic FP0R AFP0RC14CRS is a pocket-size, ultra-compact programmable controller designed for a wide range of industrial applications. It boasts a large program and data memory, ultra-high speed processing, and a standard USB tool port for high-speed program transfer. The controller also features built-in pulse outputs for multi-axis control and a battery-less automatic backup system utilizing FeRAM technology. Improvements include higher resolution analog input (14 bits) and expanded input channels, making it suitable for multi-channel systems. It supports various communication protocols and offers self-diagnostic functions for reliable operation.
PANASONIC / SUNX AFP0RC14CRS Pocket-size Compact Controller Specifications:
- Program capacity: 32 k steps max.
- Data register: 32 k words max.
- Processing speed: 80 ns/step (ST instruction)
- USB port: USB 2.0 for high-speed transfer
- Pulse outputs: Four axes (50 kHz max. each)
- Data backup: Battery-less automatic backup with FeRAM
- Analog input resolution: 14 bits
- Input channels: Up to 8-channel
- Program memory: EEPROM
- Number of basic instructions: 110 types approx.
- Number of high-level instructions: 210 types approx.
- Internal relay points: 4,096 points
- Relay memory: 1,024 points
- Data register memory: 12,315 words
- Index register: 14 words (IO to ID)
- Master control relay points: 256 words
- Number of labels: 256 labels
- High speed counter: Single-phase: 6 points (50 kHz max. each)
- PWM output: 4 points (6 Hz to 4.8 kHz)
- Pulse catch input: Total 8 points
- Special functions: Interrupt program (8 programs), Periodic interrupt, Constant scan
- RS-232C port: Transmission speed: 2,400 to 115,200 bits/sec, Distance: 15 m
- Self-diagnostic: Watchdog timer (690 ms approx.), program syntax check
