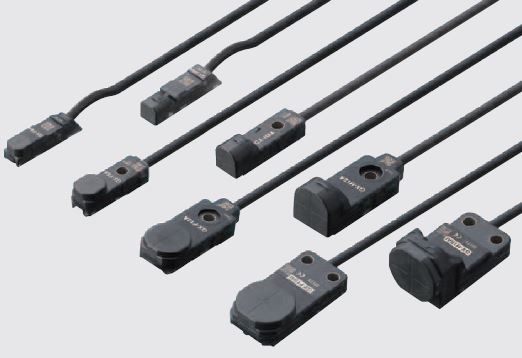

PANASONIC / SUNX GXF12AI Rectangular Inductive Sensor
The Panasonic SUNX GX-F12AI series rectangular inductive proximity sensor provides industry-leading stability and performance. Its design allows for ample installation space and features a long stable sensing range, simplifying integration into automated systems. The sensor boasts enhanced shock and vibration resistance, along with improved immunity to impulse noise, ensuring reliable operation in demanding environments. The integrated construction method provides IP68G protection against water and oil ingress. The doubled conductor thickness on GX-□6/□8 models simplifies wiring and crimping, while the prism design enhances indicator visibility. Applications include muting control of light curtains, positioning processing equipment, and checking the operation of compact molding equipment.
PANASONIC / SUNX GXF12AI Rectangular Inductive Sensor Specifications:
- sensing_object: Standard
- maximum_operation_distance_gx_f_h_6: 1.6 mm (0.063 in)
- stable_sensing_range_gx_f_h_6: 0 to 1.3 mm (0.051 in)
- maximum_operation_distance_gx_f_h_8: 2.5 mm (0.098 in)
- stable_sensing_range_gx_f_h_8: 0 to 2.1 mm (0.083 in)
- maximum_operation_distance_gx_f_h_12: 4.0 mm (0.157 in)
- stable_sensing_range_gx_f_h_12: 0 to 3.3 mm (0.130 in)
- maximum_operation_distance_gx_f_h_15: 5.0 mm (0.197 in)
- stable_sensing_range_gx_f_h_15: 0 to 4.2 mm (0.165 in)
- long_sensing_range_gx_f_h: 8.0 mm (0.315 in)
- stable_sensing_range_long_sensing_range: 0 to 6.7 mm (0.264 in)
- variation_at_max_distance: ±8%
- temperature_characteristics_variation: ±8%
- shock_resistance: 1,000 G
- vibration_resistance: 10-500 Hz
- impulse_noise_resistance: approx. three times greater
- ip_rating: IP68G
- conductor_thickness_gx_6_8: Doubled (for easier wiring and crimping)
