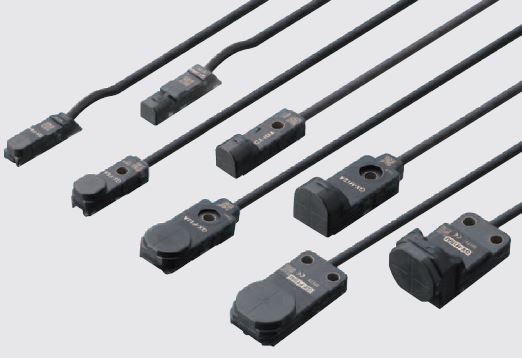

PANASONIC / SUNX GXF12APC5 Rectangular Inductive Sensor
The Panasonic SUNX GX-F12A-P-C5 is a rectangular inductive proximity sensor engineered for robust and reliable performance in demanding industrial environments. Its key features include a long stable sensing range, allowing for easier installation and reduced adjustment requirements. The sensor's design incorporates improved temperature characteristics, ensuring consistent performance across varying temperatures. It offers enhanced shock and vibration resistance, along with increased protection against water and oil (IP68G rating). The doubled conductor thickness on GX-□6/□8 models simplifies wiring and crimping. This sensor is suitable for applications such as muting control of light curtains, positioning processing equipment, and checking the operation of compact molding equipment.
PANASONIC / SUNX GXF12APC5 Rectangular Inductive Sensor Specifications:
- Industry No. 1: stable sensing
- Maximum operation distance: GX-□ 15: 5.0 mm (0.197 in), 0 to 4.2 mm (0.165 in)
- Stable sensing range: GX-□ 15: 0 to 4.0 mm (0.157 in)
- Long sensing range: 8.0 mm (0.315 in), 0 to 6.7 mm (0.264 in)
- Variation at max operation distance: ±8 %
- Operation distance variation: 0.4 mm (0.016 in) or less (GX-□ 8)
- Standard sensing object: Maximum operation distance: 2.5 mm (0.098 in) ± 8 %
- Temperature characteristics: within ±8 % between –25 to +70 °C (–13 to +158 °F)
- Shock resistance: 1,000 G
- Vibration resistance: 10 to 500 Hz (3 mm 0.118 in amplitude)
- Environmental resistance: IP68G
- Conductor thickness: doubled (GX-□6/□8 only)
