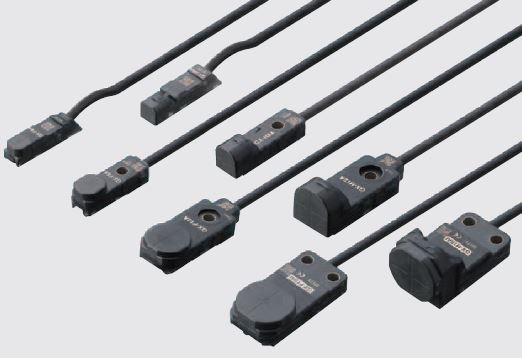

PANASONIC / SUNX GXF6B Rectangular Inductive Sensor
The Panasonic SUNX GX-F6B series represents a significant advancement in inductive proximity sensing technology. Featuring a rectangular design, this sensor offers a long stable sensing range, allowing for easier installation and reduced adjustment requirements. Its robust construction provides exceptional shock, vibration, and impulse noise resistance, ensuring reliable performance in demanding industrial environments. The GX-F6B's improved temperature characteristics and IP68G protective construction further enhance its durability and suitability for a wide range of applications, including muting control of light curtains, positioning processing equipment, and checking the operation of compact molding equipment. The doubled conductor thickness in GX-□6/□8 models simplifies wiring and crimping, contributing to overall ease of use and installation.
PANASONIC / SUNX GXF6B Rectangular Inductive Sensor Specifications:
- sensing_object: metallic
- maximum_operation_distance_gx_f6: 1.6 mm
- stable_sensing_range_gx_f6: 0 to 1.3 mm
- maximum_operation_distance_gx_8: 2.5 mm
- stable_sensing_range_gx_8: 0 to 2.1 mm
- maximum_operation_distance_gx_12: 4.0 mm
- stable_sensing_range_gx_12: 0 to 3.3 mm
- maximum_operation_distance_gx_15: 5.0 mm
- stable_sensing_range_gx_15: 0 to 4.2 mm
- long_sensing_range_distance: 8.0 mm
- long_sensing_range_stable_range: 0 to 6.7 mm
- variation_at_max_distance: ±8%
- temperature_characteristics_variation: ±8%
- shock_resistance: 10,000 m/s² (approx. 1,000 G)
- vibration_resistance: 10 to 500 Hz
- impulse_noise_resistance: approx. three times greater
- ip_rating: IP68G
- conductor_thickness: doubled (GX-□6/□8 only)
- tensile_strength_crimping_area: increased
