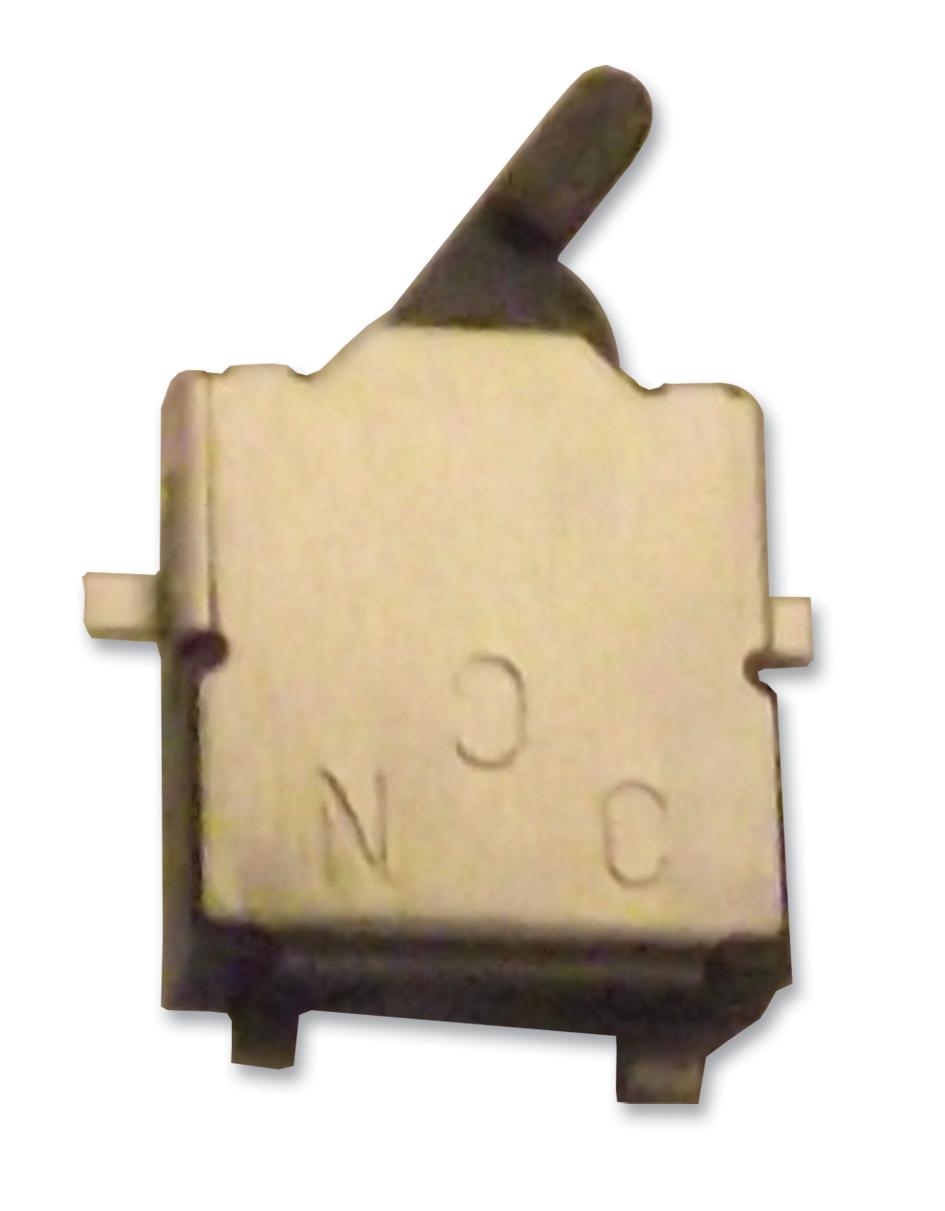

Panasonic ESE18L62A Media detection switch
The Panasonic ESE18 detector switch is a compact, surface-mounted device designed for media detection in portable electronics like phones and cameras. It features a thin body of 1.2mm, normally-open and normally-closed contact types, and supports reflow soldering. Its standard stroke is 1.5mm, with a long stroke of 2.15mm. Operating at -10°C to +60°C, it offers durability for a minimum of 50,000 cycles, with a contact resistance of 500 mΩ, and insulation resistance of 100 MΩ. Suitable for automated assembly, this switch ensures reliable media detection with high precision and longevity.
Panasonic ESE18L62A Media detection switch Specifications:
- Type: Normally-open and normally-closed
- Body Thickness: 1.2 mm
- Standard Stroke: 1.5 mm
- Long Stroke: 2.15 mm
- Operating Voltage: 3 Vdc to 10 mA, 5 Vdc (Resistive load)
- Contact Resistance: 500 mΩ max.
- Insulation Resistance: 100 MΩ min. (100 Vdc)
- Dielectric Withstanding Voltage: 100 Vac for 1 minute
- Operating Force: 300 mN max.
- Mounting Height: 1.2 mm
- Poles and Throws: 1-pole 1-throw
- Full Travel: 1.5 mm (standard), 2.15 mm (long stroke)
- Operating Life: 50,000 cycles min.
- Temperature Range: -10°C to +60°C
- Heat Resistance: +70°C for 96 hours
- Humidity Resistance: 90-95% RH for 96 hours
- Packing: Embossed tape, 5,000 pcs/reel, 30,000 pcs/carton
Buy the Panasonic Series ESE18 Media Detection Switch: ESE18L62A
Secure your portable electronics media detection needs with Panasonic's ESE18L62A switch, engineered for automation, durability, and precise media sensing. Its compact 1.2mm thin profile is perfect for space-constrained designs, supporting reflow soldering for seamless manufacturing. Reliable for over 50,000 actuations, it features both normally-open and normally-closed contacts, with operating voltage from 3 Vdc to 5 Vdc and a robust 500 mΩ contact resistance. This switch withstands harsh environments, ensuring long-term performance and high-quality media detection in compact electronic devices.
Order your Panasonic Series ESE18L62A detector switch today and ensure reliable media detection for portable electronic devices with durable automation features.
Frequently Asked Questions
Where can I buy Panasonic ESE18L62A?
You can click on the BUY or RFQ button to purchase ESE18L62A from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ESE18L62A?
You can download the ESE18L62A datasheet or visit the Panasonic website for support.
Who is the manufacturer of ESE18L62A?
Panasonic
