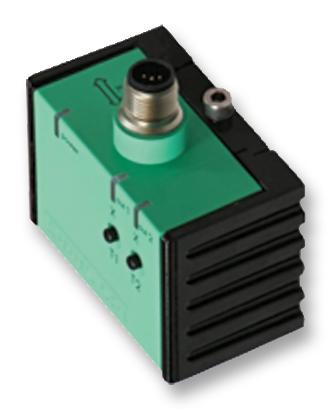

PEPPERL+FUCHS PA INX360DF99I2E2V15 Inclination Sensor
The INX360D-F99-I2E2-V15 is a 1-axis inclination sensor that accurately measures tilt from 0 to 360°, featuring PNP and NO outputs. Housed in durable PA material, it offers reverse polarity and short-circuit protection, making it highly reliable for industrial use. Equipped with two programmable switch outputs, it supports various configuration options for switching points and analog limits. The sensor withstands harsh environments with IP68/IP69k ratings and operates across a wide temperature range from -40°C to 85°C. Its high shock resistance and noise immunity ensure consistent performance in demanding conditions, making it ideal for industrial automation.
PEPPERL+FUCHS PA INX360DF99I2E2V15 Inclination Sensor Specifications:
- Type: Inclination sensor, 1-axis
- Measurement range: 0... 360°
- Absolute accuracy: 0.4°
- Response delay: <20ms
- Resolution: <0.1°
- Repeat accuracy: <0.1°
- Temperature influence: 0.027°C/K
- Operating voltage: 10...30 V DC
- No-load current: <25mA
- Switching outputs: 2 PNP, NO, reverse polarity and short-circuit protected
- Analog output: 4...20 mA, load resistor 0...200Ω at 10...18V or 0...500Ω at 18...30V
- Ambient temperature: -40°C to 85°C
- Housing material: PA
- Protection rating: IP68 / IP69k
- Connection: 5-pin M12 connector
- Operating temperature: -40°C to 85°C
- Shock resistance: 100 g according to DIN EN 60068-2-27
- Certifications: UL, cULus, CSA, E1 approval
- EMC Standards: DIN ISO 11452-2, EN61000-4 series, EN 55011
Buy the Buy Pepperl+Fuchs INX360D-F99-I2E2-V15 Inclination Sensor Part Number INX360DF99I2E2V15 Online
Order the Pepperl+Fuchs INX360D-F99-I2E2-V15 inclination sensor today to ensure precise tilt measurement for industrial automation projects. Its robust design with IP68/IP69k ratings guarantees performance in harsh conditions, while the programmable switch outputs and analog limit teaching make setup flexible. Operating across a wide temperature range from -40°C to 85°C and with high shock resistance, this sensor offers durability and accuracy. Purchase online now for fast delivery and seamless integration into your industrial systems.
Buy Pepperl+Fuchs INX360D-F99-I2E2-V15 inclination sensor now and experience unmatched reliability and precision in industrial environments.
Frequently Asked Questions
Where can I buy PEPPERL+FUCHS PA INX360DF99I2E2V15?
You can click on the BUY or RFQ button to purchase INX360DF99I2E2V15 from an authorized PEPPERL+FUCHS PA distributor.
How do I troubleshoot issues or seek technical support for part INX360DF99I2E2V15?
You can download the INX360DF99I2E2V15 datasheet or visit the PEPPERL+FUCHS PA website for support.
Who is the manufacturer of INX360DF99I2E2V15?
PEPPERL+FUCHS PA
