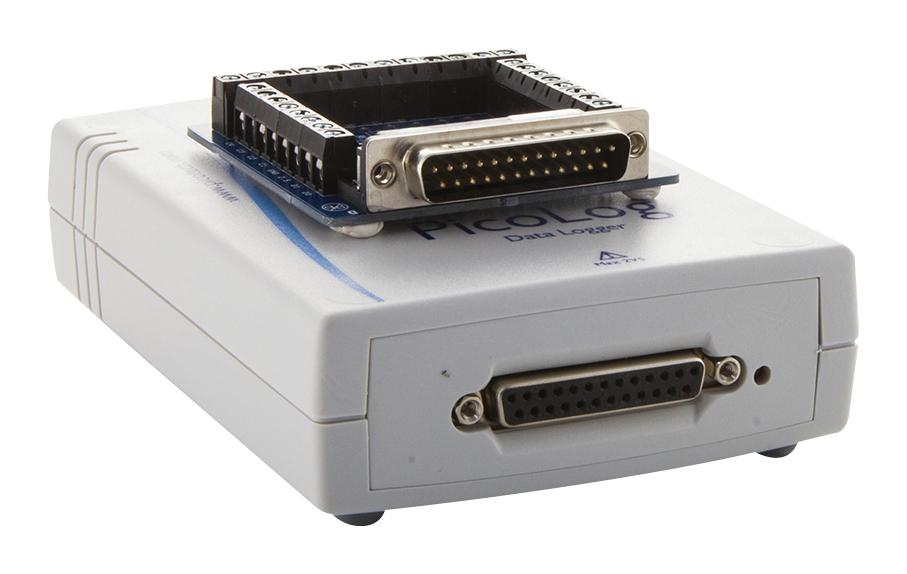

PICO TECHNOLOGY PICOLOG1216WTERMINALBOARD Data Acquisition System
The PicoLog 1216 Series is a versatile data acquisition system designed for a wide range of applications involving voltage, sensor, and transducer logging. It features 16 independent input channels with 12-bit resolution, which can be configured through software for different ranges and scaling. An external terminal board simplifies wiring and allows for easy extension of input ranges. The system supports simultaneous use of up to 20 data loggers, with a maximum sampling rate of 1 MS/s. It also includes up to four digitally configurable output lines and is powered via USB. The package includes the PicoLog software, SDK, and a terminal board for connection flexibility.
PICO TECHNOLOGY PICOLOG1216WTERMINALBOARD Data Acquisition System Specifications:
- Analog inputs: 16 channels
- Resolution: 12 bits
- Sampling rate, streaming: 1 MS/s
- Sampling rate, real-time continuous: 1 kS/s or greater
- Buffer memory: 8k samples
- Input type: Single-ended, unipolar
- Voltage range: 0-2.5V
- Accuracy: 0.5% @ 12 bits
- Overload protection: 30V
- Input impedance: 1 MΩ
- AC/DC coupling: DC
- Output digital lines: 4
- Output power for sensors: 2.5 V @ 10 mA
- Power supply: USB powered (<200 mA operation)
- Dimensions: 45 mm x 100 mm x 140 mm
- Weight: <200 g
- Operating temperature: 0°C to 70°C
- Connectivity: USB 2.0
- Compliance: CE (EMC), FCC
Buy the PicoLog 1216 – Reliable Data Acquisition for Industrial Applications
Enhance your data logging capabilities with the PicoLog 1216 Series. Featuring 16 channels with 12-bit resolution, USB power, flexible configurations, and included software, this versatile system is suitable for voltage, sensor, and transducer measurements across various industrial applications. Easy to connect and extend via external terminal boards, it provides high-speed sampling and accurate data acquisition. Perfect for engineers and technicians seeking reliable, ready-to-use data loggers with comprehensive software support for precision measurements.
Order your PicoLog 1216 data acquisition system today and enhance your voltage and transducer logging projects with reliable, USB-powered technology.
Frequently Asked Questions
Where can I buy PICO TECHNOLOGY PICOLOG1216WTERMINALBOARD?
You can click on the BUY or RFQ button to purchase PICOLOG1216WTERMINALBOARD from an authorized PICO TECHNOLOGY distributor.
How do I troubleshoot issues or seek technical support for part PICOLOG1216WTERMINALBOARD?
You can download the PICOLOG1216WTERMINALBOARD datasheet or visit the PICO TECHNOLOGY website for support.
Who is the manufacturer of PICOLOG1216WTERMINALBOARD?
PICO TECHNOLOGY
