POWER INTEGRATIONS INN3266CH210TL Flyback Power IC
The InnoSwitch™ 3-CP family of ICs simplifies the design and manufacturing of flyback power converters, especially those requiring high efficiency and compact size. These integrated devices combine primary and secondary controllers, safety-rated feedback, and multiple protection features—including line overvoltage and undervoltage protection, output overvoltage and overcurrent limiting, and overtemperature shutdown—into a single chip. They utilize a quasi-resonant (QR) or continuous conduction mode (CCM) flyback controller, high-voltage switch, secondary-side sensing, and synchronous rectification driver. The constant power profile allows continuous adjustment of output current and voltage to minimize charging time. Suitable for applications such as high-efficiency flyback designs up to 100W and USB PD/QC/proprietary protocol chargers, the ICs support various latching and auto-restart behaviors. They offer up to 94% efficiency, accurate CV/CC/CP regulation, integrated flux-linking technology, reinforced isolation exceeding 4000VAC, safety certifications including UL1577, EN60950, and EN62368, and energy-efficient operation with less than 30mW no-load power consumption. Featuring a compact footprint, they are ideal for diverse power supply applications demanding high performance and reliability.
POWER INTEGRATIONS INN3266CH210TL Flyback Power IC Specifications:
- Efficiency: Up to 94%
- Application Power Range: Up to 100 W
- Isolation Voltage: >4000 VAC
- Protection Features: Line OV/UV, output OV/OC, thermal shutdown, auto-restart/latch-off
- Output Power: Up to 100W
- Compatibility: USB PD, QC, proprietary protocols
- Mounting: InSOP-24D package
- Input Voltage Range: 85-265 VAC
- Operation Modes: QR/CCM/DCM flyback control
- Protection: Line and output overvoltage, overcurrent, overtemperature
- Efficiency: >90% at full load, <30mW no-load
- Regulation: Accurate CV/CC/CP with external resistor programming
- Component Integration: High-voltage switch, controllers, safety feedback
- Certification: UL1577, EN60950, EN62368
- Size: Compact footprint for space-constrained applications

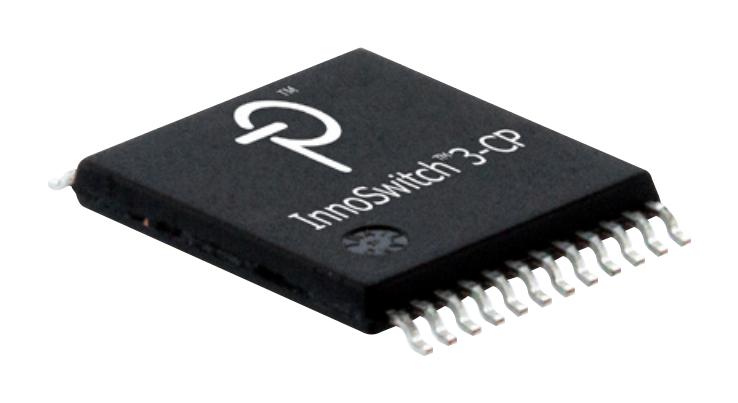

Buy the Buy Power Integrations InnoSwitch3-CP Part Number INN3266CH210TL Online
Discover the high-performance InnoSwitch3-CP flyback power IC, optimized for efficiency, safety, and compact design. Perfect for powering chargers, adapters, and industrial power supplies, this device offers excellent regulation, multiple protection features, and a high safety margin. Its integrated controllers and flux-link feedback ensure reliable operation across varying load conditions. With certification to UL, EN standards and support for USB PD, QC, and proprietary protocols, the INN3266C provides a dependable solution for high-power, compact, energy-efficient power conversion solutions. Purchase online now for quick delivery.
Buy Power Integrations InnoSwitch3-CP INN3266CH210TL now and experience unmatched reliability and high-efficiency performance for your power supply designs.
Frequently Asked Questions
Where can I buy POWER INTEGRATIONS INN3266CH210TL?
You can click on the BUY or RFQ button to purchase INN3266CH210TL from an authorized POWER INTEGRATIONS distributor.
How do I troubleshoot issues or seek technical support for part INN3266CH210TL?
You can download the INN3266CH210TL datasheet or visit the POWER INTEGRATIONS website for support.
Who is the manufacturer of INN3266CH210TL?
POWER INTEGRATIONS
