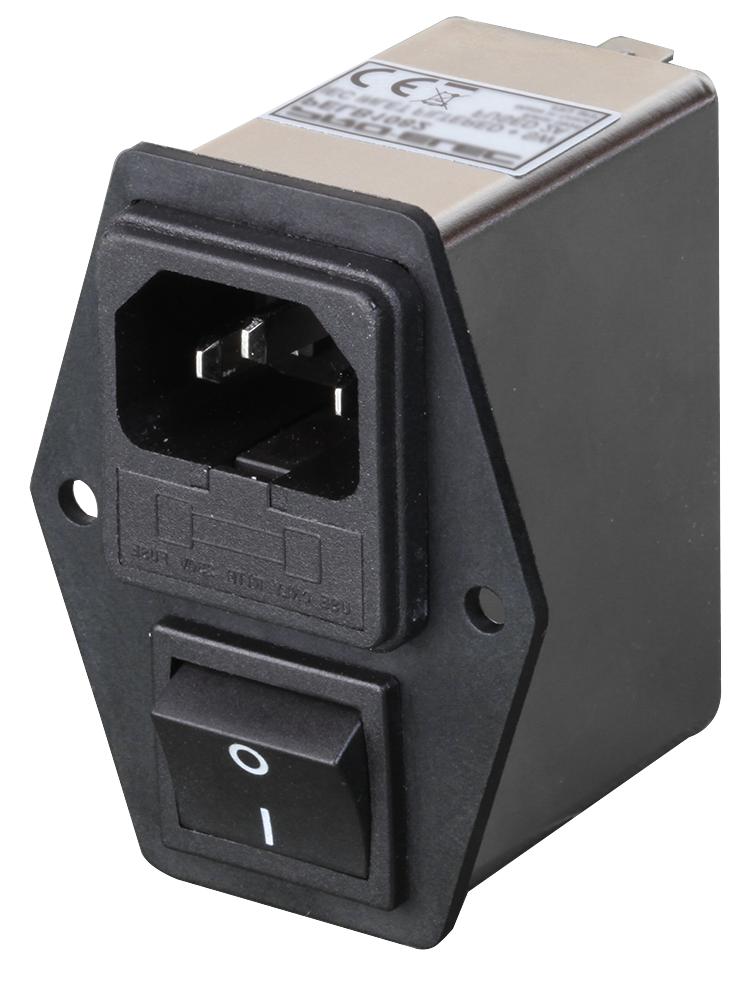

PRO ELEC PELB1082 Filtered IEC Power Entry Module
The Switched Filtered Power Entry module with a single fuse provides reliable power filtering and protection for industrial applications. It supports voltage ratings of 115/250V AC, with current ratings ranging from 2A to 10A depending on the model. Designed for safety and durability, it features a leakage current of 0.3mA at 115V and 0.6mA at 250V, with a temperature range of -25°C to +85°C. Certification includes CE, UL, TUV, cB, ensuring compliance with international safety standards. Suitable for seamless integration into power systems requiring high-quality filtering and fuse protection.
PRO ELEC PELB1082 Filtered IEC Power Entry Module Specifications:
- Voltage Rating: 115/250V AC
- Current Rating: 2A, 4A, 6A, 10A depending on model
- Operating Frequency: 50/60Hz
- Leakage Current: 0.3mA at 115V, 0.6mA at 250V
- Hipot Rating: Line to Ground 2250V AC, Line to Line 500V DC
- Insulation Resistance: 50mΩ at 500V DC
- Temperature Range: -25°C to +85°C
- Fuse Ratings: 2A, 4A, 6A, 10A
- Physical Dimensions: Panel cutout 48mm, 40.5–40.8mm depending on model
- Certifications: CE, UL, TUV, cB
Buy the PrO-ELEC PELB1082 – Reliable Power Filtering for Industrial Applications
Enhance your power systems with the PrO-ELEC filtered IEC power entry module, offering reliable protection with fuse options from 2A to 10A. Its high-quality filtering reduces electrical noise and interference, ensuring stable operation of sensitive equipment. Certified to meet international safety standards including CE, UL, and TUV, this module supports voltages up to 250V AC and operates within -25°C to +85°C temperature range. Easy to install with a suggested panel cutout of 48mm, it’s the ideal choice for industrial power management needs.
Get PrO-ELEC PELB1082 today—built for precision and long-lasting durability in power filtering solutions.
