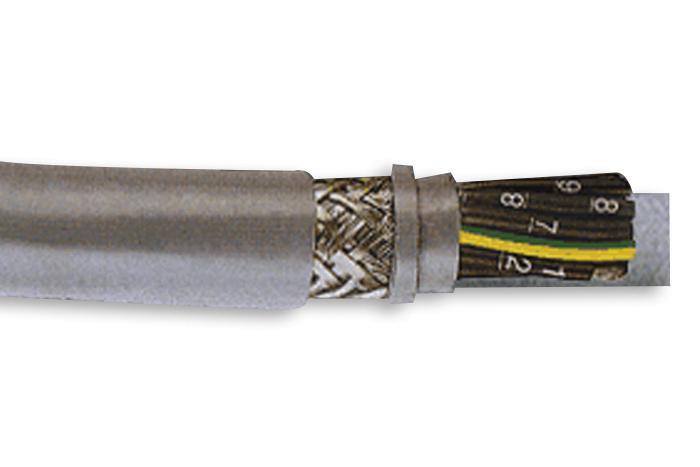

PRO-POWER PPCY4C07550M Control Cable
CY cables are flexible and fixed installation control and connection cables with tinned copper braid screens, ideal for dry, damp, and wet environments. Suitable for machine tool control, production lines, and computer units, these cables resist acids, caustic solutions, and certain oils. They are EMC compliant, space-saving, and feature PVC insulation and outer sheaths. Available in various core and cross-section options up to 50 meters, they operate at 300/500 V voltage, with temperature ranges from -40°C to +80°C for fixed installation and -5°C to +70°C for flexible use, making them versatile for industrial and measurement applications.
PRO-POWER PPCY4C07550M Control Cable Specifications:
- Conductor: Bare copper, fine wire strand in accordance to IEC 60228, VDE 0295, class 5
- Core Insulation: PVC compound TI1 in accordance with VDE 0207
- Identification: Black cores with white numbers, green/yellow ground conductor
- Braid: Tinned copper wire braid
- Outer Sheath: Grey PVC compound TN2, RAL 7001
- Nominal Voltage: 300/500 V
- Test Voltage: 3,000 V AC
- Flexible use temperature range: -5°C to +70°C
- Fixed installation temperature range: -40°C to +80°C
- Minimum Bending Radius: 12.5 x cable diameter
- Flame Retardant: IEC 60332-1, VDE 0472 part 804
- Compliance: ECD 73 / 23/ EEC low voltage directive
- Available Lengths: 50 meters per reel
- Outer Diameter: Ranges from 6.1 mm to 19 mm depending on model
- Weight: 59 kg/km to 978 kg/km depending on model
Buy the Buy Premium Control & Power Cable Part Number PPCY4C07550M Online
Order the high-quality control and power cables online today. These cables are suitable for industrial control, measurement, and computer applications, offering excellent chemical resistance, flexibility, and flame retardancy. Available in multiple core configurations and sizes up to 50 meters, they feature tinned copper braid screens for EMC compliance and durability. Designed for both fixed and flexible installations, operating at 300/500 V, and with temperature ranges from -40°C to +80°C, they ensure reliable and safe electrical connections in demanding environments.
Get Premium Control & Power Cable PPCY4C07550M today—designed for reliable performance in industrial environments and measurement systems.
