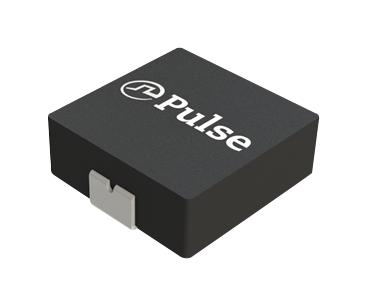

PULSE ELECTRONICS PA4342402NLT High Current Power Inductor
The high current molded power inductor series provides reliable, compact, shielded inductors suitable for power supplies, DC/DC converters, and high current filtering. With a footprint of 11.5mm x 10.3mm and a height of 4.0mm, these inductors feature low DCR, high efficiency, and operate under temperatures from -55°C to +125°C. Rated for currents up to 43A with inductance options from 0.15uH to 68uH, they minimize acoustic noise and leakage flux, ensuring high performance and durability in demanding electronic applications.
PULSE ELECTRONICS PA4342402NLT High Current Power Inductor Specifications:
- Footprint: 11.5mm x 10.3mm maximum
- Height: 4.0mm maximum
- Inductance Range: 0.15uH to 68.0uH
- Rated Current: up to 43.0A
- Temperature Range: -55°C to +125°C
- DC Resistance: varies by model, typically low
- Shielded construction for electromagnetic interference reduction
- Isolation: 200Vdc between terminal and core
- Mechanical compatibility with surface mount PCB
- Operating frequency: 100KHz, V: 1V
- Saturation current: specified per model, ensures consistent inductance under load
- Durability: suitable for high power applications, minimal acoustic noise, and leakage flux
- Material: High-quality magnetic core and copper windings
Buy the Pulse Series Power Inductor: PA4342.XXXNLT
Order Pulse Series Power Inductor PA4342.XXXNLT online today and enhance your power circuitry with a compact, shielded inductor capable of handling up to 43A. Its low DCR, high efficiency, and wide inductance range make it ideal for power supplies and DC/DC converters in demanding electronic environments. With robust construction, temperature tolerance from -55°C to +125°C, and reliable operation, this inductor guarantees durability and optimal performance. Purchase now for quality, precision, and seamless integration into your design.
Buy Pulse Series Power Inductor PA4342.XXXNLT now and experience unmatched reliability and high current performance for your power management needs.
