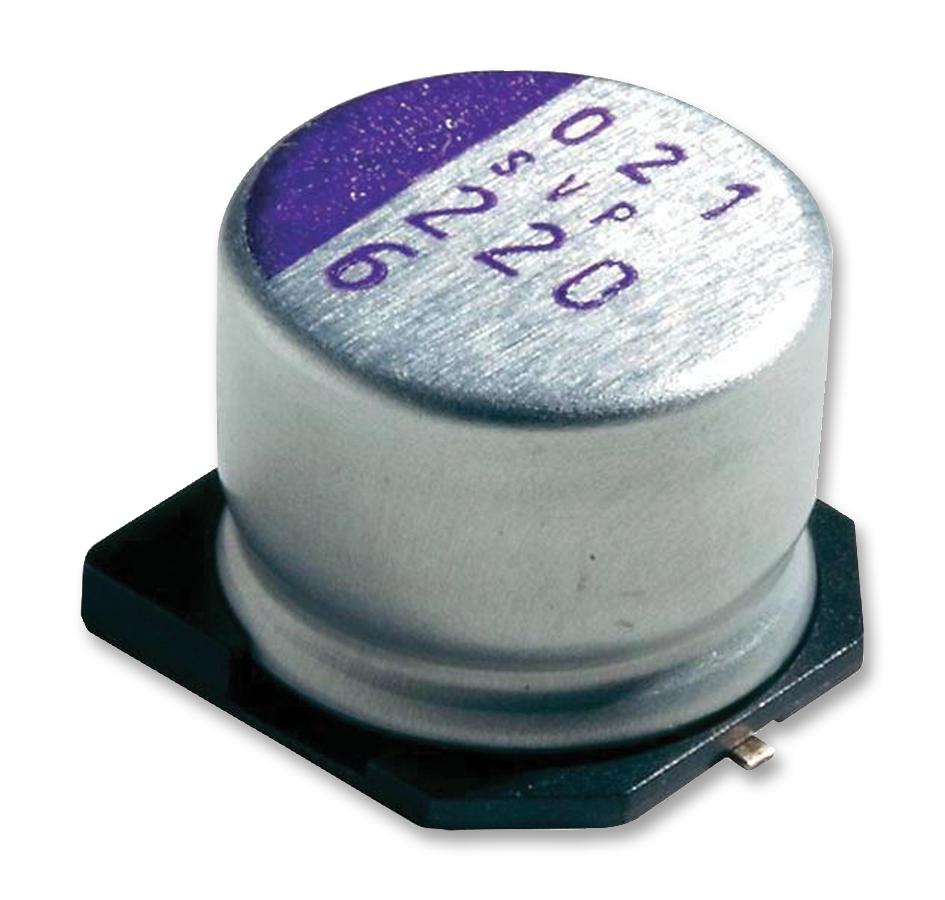

Panasonic 20SVP10M Conductive Polymer Capacitor
The Panasonic Conductive Polymer Aluminum Solid Capacitors are surface-mount, RoHS-compliant components designed for reliable electronic applications. Suitable for general-purpose use, these capacitors offer excellent endurance, low ESR, and stable performance across temperature ranges from -55°C to +105°C. Available in various capacitance and size codes, they provide optimized ripple current handling and minimal leakage. They are ideal for circuits requiring compact, high-reliability capacitors in audio visual, medical, and control equipment. Proper handling and soldering guidelines ensure long-term performance and safety in your electronic designs.
Panasonic 20SVP10M Conductive Polymer Capacitor Specifications:
- Size code AS B6 C6 E7 E12 FS F12
- Category temp. range: -55°C to +105°C
- Rated voltage range: 2.5 to 20 V
- Nominal capacitance: 3.3 to 1500 µF
- Capacitance tolerance: +20% (120 Hz / +20°C)
- Endurance: 2000 hours at +105°C with rated voltage
- Damp heat: Capacitance change within +20%, dissipation factor within 150% of initial limit
- Leakage current and dissipation factor are specified per characteristics list
- Polarity marking: (-) UW
- Size and dimensions vary per series, typical length approximately 4 mm
- RoHS and halogen free compliance ensure environmentally friendly manufacturing
- Impact-resistant design with specific reflow soldering and handling guidelines
- Ripple current and ESR depend on frequency and temperature, detailed in datasheets
- Manufactured with high-quality conductive polymer, offering low ESR and stable performance
- Designed for circuits with high ripple current, low impedance, and long-term reliability
Buy the Panasonic Series SVP Conductive Polymer Aluminum Solid Capacitors: 20SVP10M
Purchase the Panasonic SVP series 20SVP10M Conductive Polymer Capacitor online today to enhance your electronic designs with reliable, low ESR, surface-mount capacitors. These high-quality components are RoHS compliant, halogen free, and designed for demanding applications in audio, control, and medical equipment. With excellent endurance and stable operation across a wide temperature range, they ensure long-term durability. Quick online ordering provides fast delivery, enabling you to integrate top-tier capacitors into your projects efficiently and confidently, meeting strict quality standards and environmental regulations.
Order your Panasonic Series SVP 20SVP10M high-reliability capacitor today and ensure excellent performance and longevity in your electronic projects.
Frequently Asked Questions
Where can I buy Panasonic 20SVP10M?
You can click on the BUY or RFQ button to purchase 20SVP10M from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part 20SVP10M?
You can download the 20SVP10M datasheet or visit the Panasonic website for support.
Who is the manufacturer of 20SVP10M?
Panasonic
