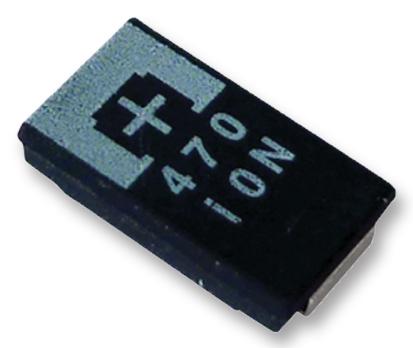

Panasonic 20TQC22MYFB Tantalum Solid Capacitor
The Panasonic 20TQC22MYFB is a high-performance conductive polymer tantalum solid capacitor designed for surface mount technology. It offers a compact size and robust performance, making it suitable for various industrial and consumer electronic applications. Key features include high voltage tolerance, RoHS compliance, and halogen-free construction. These capacitors are commonly used in power supplies, filtering circuits, and other critical applications where reliability and stability are paramount. The capacitor's endurance and damp heat characteristics ensure long-term performance under demanding conditions.
Panasonic 20TQC22MYFB Tantalum Solid Capacitor Specifications:
- Size code: B2
- Category temperature range: –55 °C to +105 °C
- Rated voltage range: 16 V.DC to 35 V.DC
- Category voltage range: 16 V.DC to 35 V.DC
- Rated capacitance range: 3.9 μF to 33 μF
- Capacitance tolerance: ±20 % (120 Hz / + 20 °C)
- Leakage current: Please see the attached characteristics list
- Dissipation factor (tand): Please see the attached characteristics list
- Surge voltage (V.DC): Rated voltage×1.15
- Endurance: +105 °C,2000 h(16TQC33MYFB : 1000 h),rated voltage applied
- Capacitance change: Within ±20 % of the initial value
- tand: <1.5 times of the initial limit
- DC leakage current: Within the initial limit
- Damp heat: +60 °C,90 % to 95 %,500 h,No-applied voltage
- Capacitance change (Damp Heat): Within +40 %,−20 % of the initial value
- tand (Damp Heat): <1.5 times of the initial limit
- DC leakage current (Damp Heat): <3 times of the initial limit
- Ripple current: 800 (100 kHz / +105 °C)
- ESR: 100 (100 kHz/+20 °C)
- tand (120 Hz/+20 °C): 0.10
- LC: 48.0 (µA)
- Ref ow Temp <260°C: 2000
- Ref ow Temp <250°C: –
