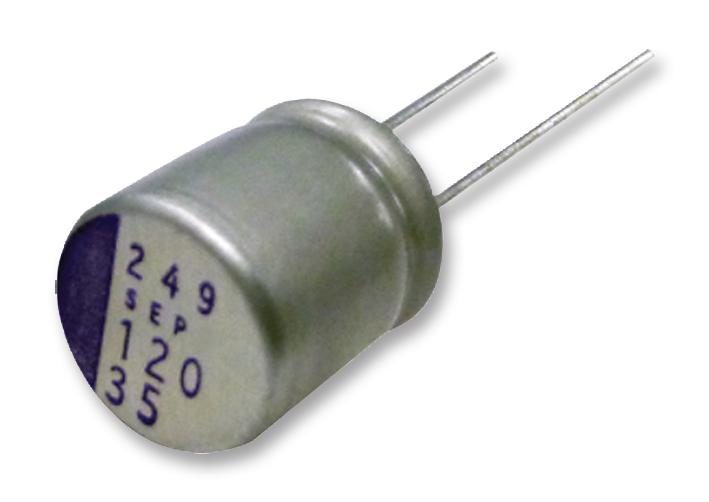

Panasonic 25SEPF330M Conductive Polymer Capacitor
The Panasonic SEPF series is a range of conductive polymer aluminum electrolytic capacitors specifically engineered for radial lead mounting. These capacitors boast high voltage ratings (up to 35V) and substantial capacitance (up to 1000μF), making them ideal for applications demanding robust power storage and filtering. RoHS compliance and halogen-free construction ensure environmental responsibility. Common applications include power supplies, inverters, and other industrial equipment where stable and reliable performance is critical. The SEPF series provides a balance of performance, size, and cost-effectiveness for a wide range of electronic designs.
Panasonic 25SEPF330M Conductive Polymer Capacitor Specifications:
- Categorytemp. range: –55 ℃ to +105 ℃
- Rated voltage range: 16 V to 35 V
- Nominal cap.range: 22μF to 1000μF
- Capacitance tolerance: ±20 %(120 Hz / +20 ℃)
- DC leakage current: Please see the attached characteristics list
- Dissipation factor (tan δ): Please see the attached characteristics list
- Endurance: +105 ℃ 5000 h,rated voltage applied
- Ripple current: 2590 mA rms (100 kHz / +105 ℃)
- ESR: 30 mΩ max. (100 kHz to 300 kHz / +20 ℃)
- tan δ: 0.12 (120 Hz / +20 ℃)
- LC: 480 μA
Buy the 25SEPF330M PANASONIC Conductive Polymer Capacitor | myMectronic
Purchase the Panasonic 25SEPF330M securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic 25SEPF330M?
You can click on the BUY or RFQ button to purchase 25SEPF330M from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part 25SEPF330M?
You can download the 25SEPF330M datasheet or visit the Panasonic website for support.
Who is the manufacturer of 25SEPF330M?
Panasonic
