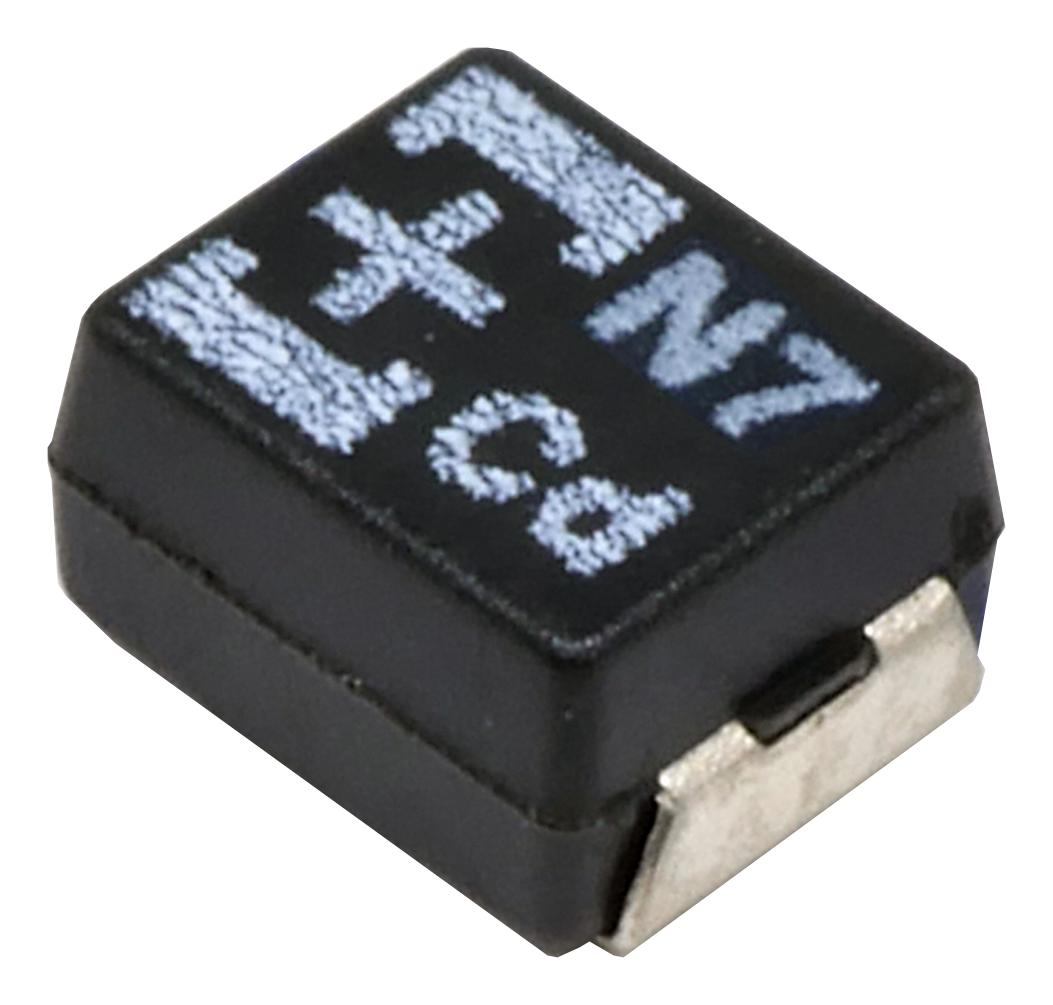

Panasonic 25TDC68MYF Tantalum Solid Capacitor
The Panasonic 25TDC68MYF is a conductive polymer tantalum solid capacitor engineered for robust performance in a wide range of electronic applications. It offers high voltage tolerance and is guaranteed to maintain stability at temperatures up to 125°C. Designed for use in audio/visual equipment, home appliances, and computer systems, this capacitor provides reliable power storage and filtering. Its RoHS compliance ensures environmentally responsible usage. The capacitor's compact size and high capacitance density make it a versatile choice for space-constrained designs.
Panasonic 25TDC68MYF Tantalum Solid Capacitor Specifications:
- Size code: D3L
- Categorytemp. range: –55℃to+125℃
- Ratedvolt. range: 16V to25V
- Categoryvolt. range: 12.8V to20V
- Rated cap. range: 68 μF to150 μF
- Capacitancetolerance: ±20 % (120 Hz /+20℃)
- Leakage current: ≦2 times of the initial limit
- Dissipation factor(tanδ): ≦2 times of the initial limit
- Surgevoltage (V): Ratedvoltage× 1.15
- Endurance: +125℃1000 h, category voltage applied
- Capacitance change: Within ±20 % of theinitial value
- Damp heat: +60℃, 90 % to 95 % RH, 500 h, No-applied voltage
- Damp heat Capacitance change: Within+40 %,−20 % of the initial value
- Damp heat Dissipation factor(tanδ): ≦1.5 times of the initial limit
- Damp heat Leakage current: ≦3 times of the initial limit
- Ripple current: 1000 mA rms
- ESR: 90 mΩ max.
- tan δ: 0.10
- LC: 158.4 μA
- Rated voltage: 25V
- Rated temperature: 105℃
- Category voltage: 20V
- Case size L: 7.3 mm
- Case size W: 4.3 mm
- Case size H: 2.8 mm
