Panasonic 2R5TPF680M6L Electrolytic Capacitor
This high-performance capacitor series offers ultra-low ESR of 5mΩ to 15mΩ, high capacitance up to 1000µF, and operates within a temperature range of -55°C to +105°C. Designed for demanding electronic applications, these capacitors feature RoHS compliance, halogen-free construction, and are suitable for power supply filtering, decoupling, and smoothing circuits. Their compact size, precise dimensions, and robust electrical characteristics ensure reliability and durability in various industrial and consumer electronic devices.
Panasonic 2R5TPF680M6L Electrolytic Capacitor Specifications:
- Capacitance Range: 150 to 1000 µF at 120Hz/20°C
- Rated Voltage: 2.0V, 4.0V, 6.3V, 10V, 16V, 25V, 40V, 63V
- Temperature Range: -55°C to +105°C
- ESR: 5mΩ to 15mΩ (Ultra low ESR)
- Leakage Current: Specified after 5 minutes at rated voltage
- Dissipation Factor: See characteristics list for details
- Endurance: 500 hours at 105°C with specified voltage
- RoHS compliant, Halogen-free
- Dimensions: Various sizes as per model specifications
- Dimensions (mm): 8.73 x 4.3 x 2.83 (example for specific size code)
- Operating Frequency: 100kHz/20°C
- Certification: RoHS compliant, Halogen-free material
- Recommended PWB Land Pattern: 24 mm mounting footprint
- Series: TPF

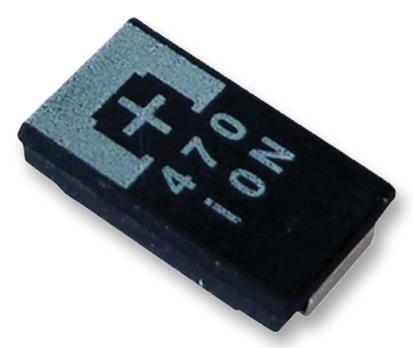

Buy the Brand Series TPF Capacitors: 2R5TPF680M6L
Experience reliable power filtering and decoupling with the Brand Series TPF electrolytic capacitor, model 2R5TPF680M6L. Designed for stability, low ESR, and excellent endurance at high temperatures, this capacitor supports a wide range of industrial and consumer electronics that demand high performance. Its RoHS compliance and halogen-free construction ensure environmentally friendly operation. With a capacity of 680µF and operating voltage up to 25V, it offers excellent electrical characteristics and dimensional compatibility, making it ideal for power supply smoothing, filtering, and decoupling applications. Purchase online today for assured quality and durability.
Get Brand Series TPF 2R5TPF680M6L today—built for precision, high capacitance, and long-lasting durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy Panasonic 2R5TPF680M6L?
You can click on the BUY or RFQ button to purchase 2R5TPF680M6L from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part 2R5TPF680M6L?
You can download the 2R5TPF680M6L datasheet or visit the Panasonic website for support.
Who is the manufacturer of 2R5TPF680M6L?
Panasonic
