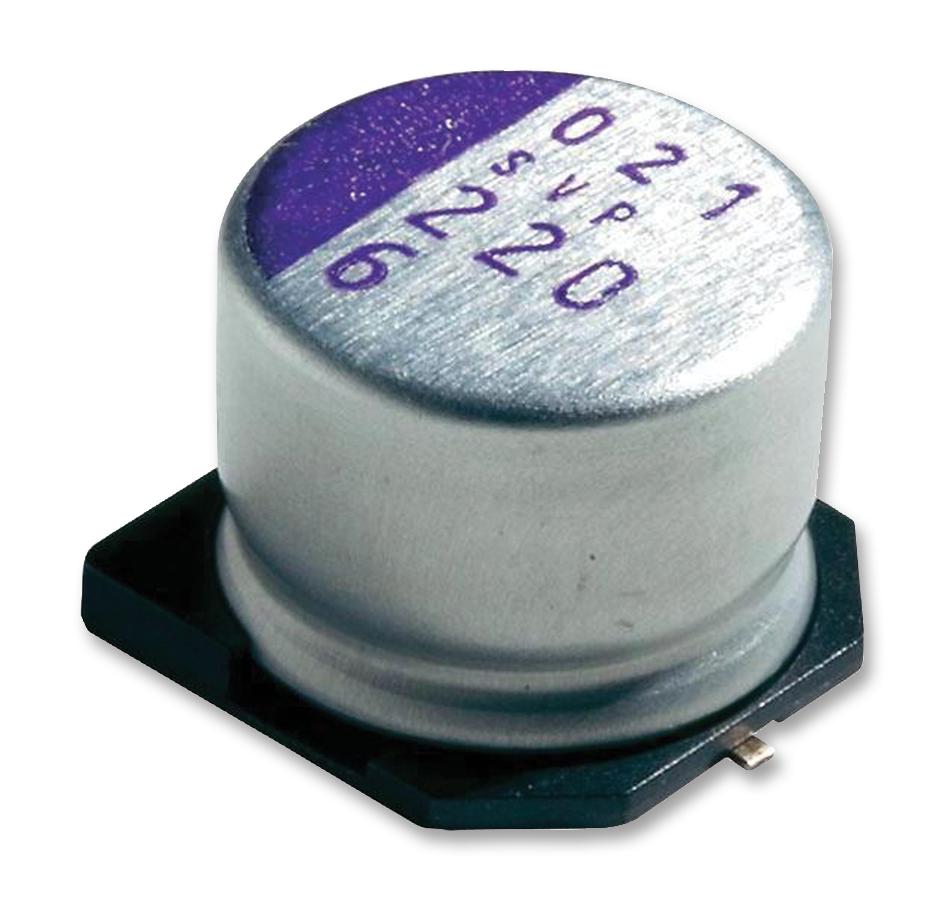

Panasonic 6SVP22M Conductive Polymer Aluminum Capacitor
The Panasonic 6SVP22M is a surface mount conductive polymer aluminum capacitor, part of the SVP series. These capacitors are designed for a wide range of applications requiring compact size and high capacitance. They offer excellent performance characteristics including low ESR and high ripple current handling capability. The 6SVP22M is RoHS compliant and halogen-free, making it an environmentally friendly choice for modern electronic designs. Typical applications include power supplies, DC-DC converters, and other filtering and decoupling circuits.
Panasonic 6SVP22M Conductive Polymer Aluminum Capacitor Specifications:
- Size code: ['A5', 'B6', 'C6', 'E7', 'F8', 'E12', 'F12']
- Categorytemp. range: –55 ℃ to +105 ℃
- Rated voltage range (V): ['4.0 to 16', '4.0 to 20', '2.5 to 20', '4.0 to 20', '4.0 to 20', '2.5 to 20']
- Nominal cap.range (μF): ['3.3 to 33', '10 to 68', '22 to 220', '33 to 330', '56 to 680', '100 to 680', '150 to 1500']
- Capacitance tolerance: ±20 %(120 Hz / +20 ℃)
- DC leakage current: Please see the attached characteristics list
- Dissipation factor (tan δ): Please see the attached characteristics list
- Endurance: +105 ℃ 2000 h,rated voltage applied
- Capacitance change: Within ±20 % of the initial value
- Dissipation factor(tanδ): ≦ 150 % of the initial limit
- DC leakage current (after voltage processing): Within the initial limit
- Damp heat: +60 ℃,90 % to 95 %,1000 h,No-applied voltage
- Dimensions (H): H±02
- Dimensions (W): W±02
- Dimensions (φD): φD
- Dimensions (L): +0.1
- Dimensions (C): C±02
- Dimensions (R): R
- Size code A5: ['4.0', '5.4', '4.3', '4.3', '5.0', '0.6 to 0.8']
- Size code B6: ['5.0', '5.9', '5.3', '5.3', '6.0', '0.6 to 0.8']
- Size code C6: ['6.3', '5.9', '6.6', '6.6', '7.3', '0.6 to 0.8']
- Size code E7: ['8.0', '6.9', '8.3', '8.3', '9.0', '0.6 to 0.8']
- Size code F8: ['10.0', '7.9', '10.3', '10.3', '11.0', '0.6 to 0.8']
- Size code E12: ['8.0', '11.9', '8.3', '8.3', '9.0', '0.8 to 1.1']
- Size code F12: ['10.0', '12.6', '10.3', '10.3', '11.0', '0.8 to 1.1']
