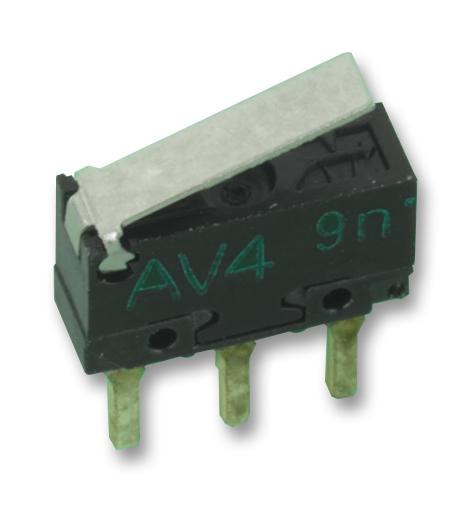

Panasonic AH146261A High-Precision Miniature Switch
The AH146261A is a high-precision, ultra-miniature switch featuring an integrally molded terminal block that prevents flux ingress and a flat terminal design for easy soldering. Suitable for applications such as computer mice and mobile phone chargers, it offers reliable operation with various actuator types, including pin plunger, hinge, and roller levers. The switch supports low-level circuit currents, robust dielectric strength, and a variety of mounting options designed for compact electronic assemblies in industrial equipment and control systems, ensuring dependable performance with a lifespan exceeding 10 million operations.
Panasonic AH146261A High-Precision Miniature Switch Specifications:
- Contact rating: 1A 125V AC, 1A 30V DC for standard type, and 0.1A 125V AC/DC for low-level circuit type
- Expected life: Over 100 million operations (mechanical), 10 million (electrical at rated load)
- Dielectric strength: 600 Vrms between terminals, 1500 Vrms to exposed parts
- Insulation resistance: Minimum 100 MΩ at 500V DC
- Operating temperature: -25°C to +85°C
- Shock resistance: 294 m/s² (contact opening, max. 1ms)
- Vibration resistance: 10-55 Hz at 0.75mm amplitude
- Mounting torque: Max. 0.098 N·m using 2mm screws
- Actuator types: Pin plunger, hinge lever, simulated roller lever, right/left angle PCB terminals
- Pretravel: 0.12–0.47 mm depending on actuator, Overtravel: min. 0.25 mm
- Material: AgNi alloy contacts, gold-clad options available
- Dimensions: vary by actuator type, with specific mounting hole spacing and pattern
- Product compliance: UL, CSA listed
Buy the Buy Panasonic Switches Part Number AH146261A Online
Purchase the Panasonic high-precision ultra-miniature switch AH146261A online now. Perfect for compact electronic devices, it offers excellent durability, versatile actuator options, and low-level circuit support. This switch features a molded terminal block for flux protection, flat terminals for easy soldering, and a robust design that guarantees over 100 million operations. Ideal for applications like control panels, industrial equipment, and consumer electronics, this switch ensures dependable performance, easy installation, and compliance with safety standards. Get yours today!
Order your Panasonic SeriesAH146261A ultra-miniature switch today and ensure precise, reliable control for your electronic projects and industrial applications.
