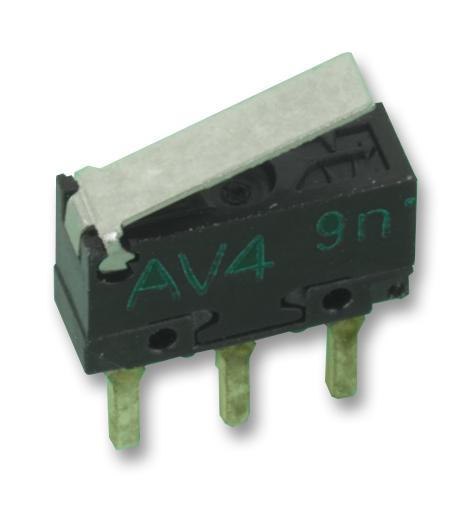

Panasonic AH14629A High-Precision Micro Switch
The product is a high-precision, ultra-miniature switch designed for various industrial and electronic applications, including mobile phone chargers, computer mice, and automotive electronics. It features an integrally molded terminal block to prevent flux entry during soldering and a flat terminal shape for easy soldering. Available in PC board stand-off, right angle, and left angle types with various operating forces and terminal configurations, it is suitable for low-level and resistive load switching, offering reliable performance in compact designs.
Panasonic AH14629A High-Precision Micro Switch Specifications:
- Contact rating: 1A 125V AC, 1A 30V DC for standard type; 0.1A 125V AC/DC for low-level circuits
- Maximum current: 3A at 125V AC, 2A at 30V DC for standard type; 0.1A at 125V AC/DC for low-level circuit
- Expected life: Mechanical 5 x 10^8 operations, Electrical 10^8 operations at rated load
- Operating force: 0.74N to 1.47N depending on actuator type, with specific forces for pin plunger, hinge lever, and roller lever
- Dielectric strength: 600 Vrms between terminals, 1500 Vrms to exposed parts and ground
- Insulation resistance: Min 100 MΩ at 500V DC
- Initial contact resistance: Max 30 mΩ
- Ambient temperature: -25°C to +85°C, non-freezing below 0°C
- Shock resistance: 294 m/s², vibration resistance: 10-55Hz with 0.75mm amplitude
- Soldering: Manual soldering within 3 seconds at 350°C, no stress applied post-soldering
- Terminal mounting screws: 2mm with torque up to 0.098 N-m
Buy the Panasonic AH14629A – Reliable High-Precision Switch for Industrial Applications
Proceed with your purchase of the Panasonic high-precision micro switch AH14629A online today to benefit from durable construction, versatile mounting options, and accurate switching performance. Designed for low-level circuits and high-reliability demands, this compact switch ensures smooth operation in demanding environments. Opt for quick online ordering to secure this dependable component that meets industrial standards. Enhance your electronic projects and manufacturing with this high-quality switch — reliable, easy to install, and essential for precision applications.
Buy Panasonic AH14629A now and experience unmatched reliability and performance in space-efficient switching solutions for industrial electronics.
Frequently Asked Questions
Where can I buy Panasonic AH14629A?
You can click on the BUY or RFQ button to purchase AH14629A from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AH14629A?
You can download the AH14629A datasheet or visit the Panasonic website for support.
Who is the manufacturer of AH14629A?
Panasonic
