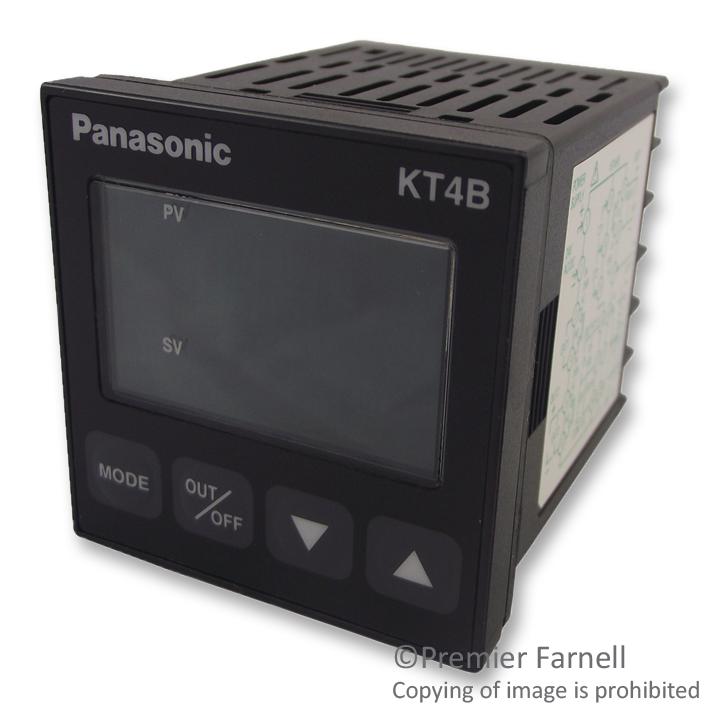

Panasonic AKT4B112200 Temperature Controller
The Panasonic KT series temperature controllers are advanced industrial devices designed for precise temperature regulation in various applications. They feature extensive input options including thermocouples, RTDs, DC voltage, and DC current, and come with versatile control outputs such as relay contact and non-contact voltage for SSR drive. Upgraded models like KT4H and KT4B provide enhanced visibility with larger displays, easy programming functions, auto tuning, and space-saving compact designs. Suitable for space-saving heating, cooling, injection molding, and baking processes, these controllers ensure reliable, fine control with intelligent auto-tuning and communication capabilities.
Panasonic AKT4B112200 Temperature Controller Specifications:
- Dimensions: 48 x 24 mm (KT2), 48 x 48 mm (KTAR), 96 x 96 mm (KT8R, KTOR), 22.5 x 75 mm (KT7), 48 x 48 mm (KT4H/KT4B)
- Power Supply: 100-240 V AC or 24 V AC/DC (model dependent)
- Input Types: Thermocouple, RTD, DC voltage, DC current, with input spans up to 2315°C (4200°F)
- Control Outputs: Relay contact 3A250V AC, non-contact voltage for SSR drive, DC current/voltage outputs
- Communication: Optional RS485 (Modbus RTU/ASCII), max 31 nodes over 1000 meters
- Display Character Height: Up to 14mm for PV and SV
- Accuracy: Within 0.2% of span, ±1 digit
- Auto-tuning: Built-in PID auto-tuning function for precise control
- Installation: Panel, DIN rail, or flush mounting with IP66/IP66-ratings for dust and water resistance
- Environmental: Operating temperature 0-50°C, humidity 35-85% RH, no condensation
Buy the Panasonic Series KT Temperature Controller: AKT4B112200
Discover the Panasonic KT series temperature controllers that provide accurate, reliable temperature management in diverse industrial applications. Featuring multi-input options like thermocouples, RTDs, and DC signals, they feature auto-tuning PID control, large easy-to-read displays, and compact designs suitable for space-constrained environments. Easy to program through front keys or PC software, these controllers enhance process stability, energy efficiency, and cost-effectiveness. Ideal for heating, cooling, injection molding, and oven control, ensure your project’s success with Panasonic’s high-performance temperature control solutions available for online purchase today.
Order your Panasonic Series KT4B112200 today and get reliable, precise temperature control for industrial heating and cooling applications.
Frequently Asked Questions
Where can I buy Panasonic AKT4B112200?
You can click on the BUY or RFQ button to purchase AKT4B112200 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AKT4B112200?
You can download the AKT4B112200 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AKT4B112200?
Panasonic
