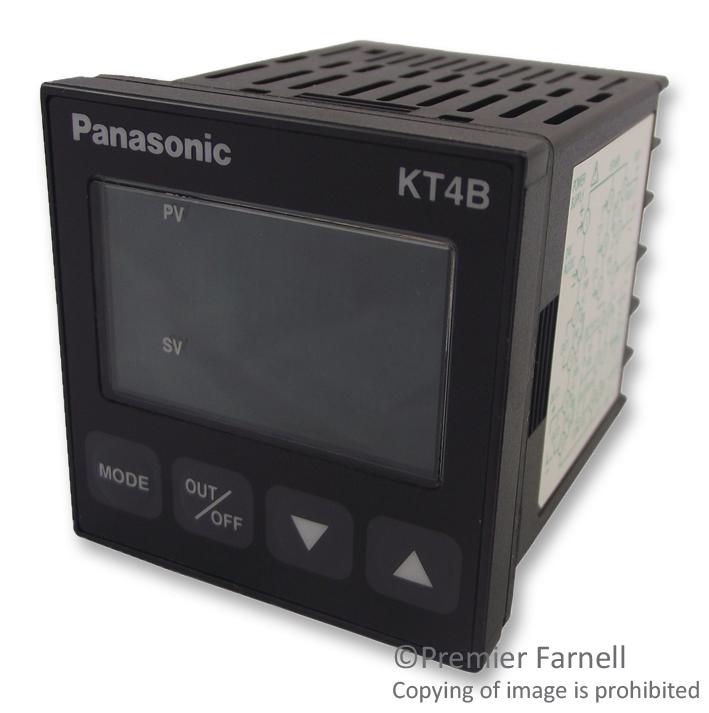

Panasonic AKT4B2112001 Temperature Controller
The Panasonic KT Series Temperature Controller offers versatile and precise temperature regulation suitable for industrial applications. It features multi-input sensor capability, easy programming, auto-tuning, and various control modes, including PID, ON/OFF, and PD actions. Compact sizes and improved visibility enhance operability, while optional communication functions facilitate remote management via RS485 protocol. Designed to meet market demands for accuracy, space-saving installation, and cost-effectiveness, these controllers are ideal for heating, cooling, and process control in manufacturing, molding, and other automation systems.
Panasonic AKT4B2112001 Temperature Controller Specifications:
- Sizes: 48 x 24 mm, 48 x 48 mm, 48 x 96 mm, 96 x 96 mm, 22.5 x 75 mm
- Power Supply: 100-240 V AC or 24 V AC/DC (model-dependent)
- Input Types: Thermocouple, RTD, DC voltage, DC current
- Control Output: Relay contact, open collector, DC current/voltage
- Alarm Outputs: Optional, with alarm contact or open collector
- Communication: RS485 Modbus protocol (optional, compatible with multiple units)
- Display: PV and SV character height from 6 mm to 14 mm
- Ambient Temperature: 0 to 50°C, -10 to 55°C for some models
- Protection: IP66 front panel (with rubber gasket), suitable for harsh environments
- Dimensions: from compact 48x24 mm to large 96x96 mm units, designed for space-saving mounting
- Features: Auto-tuning, program control with 9-step pattern, relay and linear control methods
- Installation: Panel or DIN rail, with accessories including installation frames, terminal covers, and shunt resistors
- Certifications: UL, CSA recognized, CE complying with EMC and Low Voltage directives
Buy the Panasonic Series KT: Temperature Controller AKT4B2112001
Purchase Panasonic KT Series Temperature Controller online today to experience high accuracy, flexible sensor options, and reliable control in your manufacturing and automation systems. Designed for space efficiency and easy integration, these controllers feature auto-tuning, multi-input capability, and sophisticated communication protocols for seamless remote management. Whether for heating, cooling, or process control, buy now and enjoy robust performance, simplified programming, and dependable operation that enhances your productivity and reduces downtime in industrial environments.
Get Panasonic KT4B2112001 today—built for precision and long-lasting durability in industrial temperature control.
Frequently Asked Questions
Where can I buy Panasonic AKT4B2112001?
You can click on the BUY or RFQ button to purchase AKT4B2112001 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AKT4B2112001?
You can download the AKT4B2112001 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AKT4B2112001?
Panasonic
