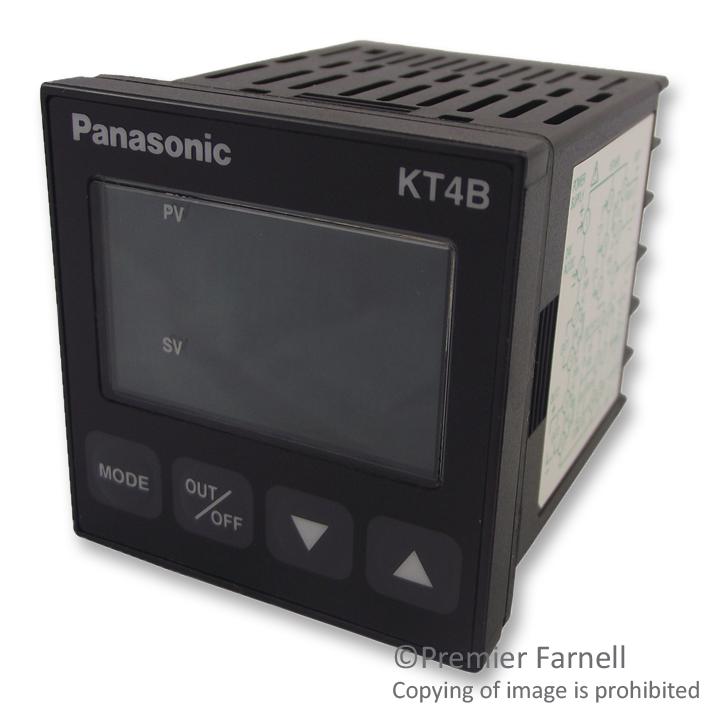

Panasonic AKT4B2121002 Temperature Controller
The Panasonic KT series temperature controllers are versatile, compact devices designed for precise temperature regulation in industrial applications. Featuring multiple input options like thermocouples, RTDs, DC voltage, and current, they support various control modes including PID with auto-tuning, ON/OFF, PD, and P actions. These controllers offer enhanced visibility with large displays, space-saving designs, and front-panel operation keys. They support communication via RS485 (Modbus), support DIN rail and panel mounting, and feature customizable alarm and heater burnout functions, making them suitable for diverse heating and cooling systems.
Panasonic AKT4B2121002 Temperature Controller Specifications:
- Size: 48 x 24 mm, 48 x 48 mm, 48 x 96 mm, 96 x 96 mm, 22.5 x 75 mm, 48 x 48 mm
- Power supply: 100-240 V AC / 24 V AC/DC
- Input types: Thermocouple, RTD, DC voltage, DC current
- Input ranges for thermocouples (J, K, R, S, etc.) vary from -200 to 1370°C
- Control modes: PID with auto-tuning, ON/OFF, PD, P modes
- Output: Relay contact (up to 3A/250 VAC), Non-contact voltage, Open collector
- Communication: RS485 Modbus protocol, max 31 nodes, up to 1000 m distance
- Display: PV and SV character height up to 14 mm, adjustable
- Protection: IP66 front panel option, suitable for harsh environments
- Installation: Panel mounting, DIN rail mounting (KT7 series), vertical or lateral as per series
- Temperature range: -10°C to 55°C for some models, up to 50°C ambient for others
- Vibration/shock resistance: Standard IEC 61010-1 compliant
- Dimensions vary by model, with installation compatible with panel cutouts specified
- Includes optional software for data logging and parameter editing
Buy the Panasonic Series KT Temperature Controller: AKT4B2121002
Experience precise and reliable temperature regulation with Panasonic KT series controllers. Designed for industrial environments, these devices feature multi-input options, advanced control modes, and RS485 communication. Easy to mount and operate, they support various sensors like thermocouples and RTDs, plus offer customizable alarm functions. Ideal for heating, cooling, injection molding, and curing ovens, they contribute to space and cost savings while ensuring optimal process control. Purchase online now for seamless integration into your automation systems and industrial setups.
Buy Panasonic KT series AKT4B2121002 now and experience unmatched reliability and performance in industrial temperature control systems.
Frequently Asked Questions
Where can I buy Panasonic AKT4B2121002?
You can click on the BUY or RFQ button to purchase AKT4B2121002 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AKT4B2121002?
You can download the AKT4B2121002 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AKT4B2121002?
Panasonic
