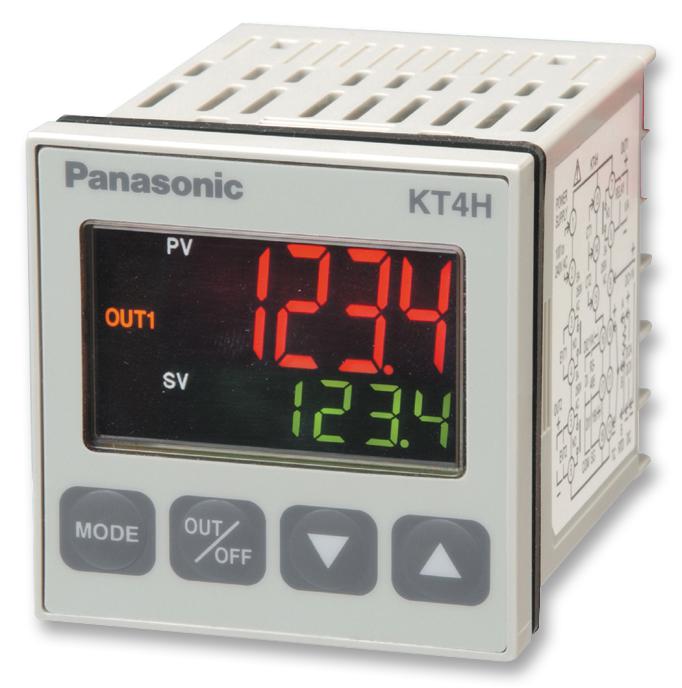

Panasonic AKT4H1112001 Temperature Controller
The Panasonic KT series temperature controllers are compact, precise, and versatile devices designed for industrial heating applications. They feature multi-input sensors including thermocouples, RTDs, and DC voltage/current, with options for relay, SSR drive, and alarm outputs. Enhanced auto-tuning, high-speed sampling, and improved visibility make them ideal for space-saving, cost-effective control systems in injection molding, printing, and kitchen appliances. DIN rail mounting options, robust communication protocols like Modbus RTU/ASCII, and easy PC integration ensure reliable operation and maintenance in demanding environments.
Panasonic AKT4H1112001 Temperature Controller Specifications:
- Physical sizes: 48x24mm, 48x48mm, 96x96mm, 22.5x75mm, 48x96mm, 96x96mm
- Power supply: 100-240 V AC or 24 V AC/DC (model-dependent)
- Input types: Thermocouple, RTD, DC voltage, DC current
- Input ranges: -200 to 1370°C for thermocouples, -200 to 1000°C for RTDs, 0-5V, 4-20mA signals
- Sampling period: 125-250 ms depending on model
- Control Outputs: Relay contact 250 V AC 3A, SSR drive, open collector, or DC output
- Alarm outputs: Relay or open collector, voltage options vary
- Communication: RS485 (Modbus RTU/ASCII), max 31 nodes, up to 1000m cable
- Display: Character height 6.0 to 14 mm depending on model
- Dimensions: 22.5x75mm to 96x96mm, with embedded mounting options
- Operational temperature: -10°C to 55°C or up to 50°C depending on model
- Protection: IP66 front panel (with gasket), suitable for harsh environments
- Auto tuning: Built-in PID auto-tuning for precise control
- Response time: 125-250 ms for high responsiveness
- Certifications: UL, CSA, CE, RoHS compliant
Buy the Panasonic AKT4H1112001 – Reliable Temperature Controller for Industrial Heating
Enhance your industrial heating systems with Panasonic KT series temperature controllers. Designed for precision and durability, these compact devices feature multiple sensor inputs, auto-tuning PID control, and robust communication options like Modbus RS485. They are easy to install and suitable for space-saving applications such as injection molding, printing machines, and kitchen appliances. With high response speeds and IP66 front protection, they ensure reliable operation in harsh environments. Order online now for fast delivery and professional performance upgrades.
Buy Panasonic KT series temperature controllers now and experience unmatched reliability, high-speed response, and versatile sensor options for all industrial heating needs.
Frequently Asked Questions
Where can I buy Panasonic AKT4H1112001?
You can click on the BUY or RFQ button to purchase AKT4H1112001 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AKT4H1112001?
You can download the AKT4H1112001 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AKT4H1112001?
Panasonic
